MP1015

Features: ` Built-in Burst Mode Oscillator and Modulator` Built-in Analog and Burst Mode Dimming` Built-in Current and Voltage Feedback Control` Built-in Open/Short Lamp Protection` Built-in Dual Mode Fault Timer` Built-in Soft-on/Soft-off Burst Mode` Automatic Recovery from ESD Event` Wide Range ...

product image

MP1015 Picture
See larger image
SeekIC No. : 004425413 Detail

MP1015: Features: ` Built-in Burst Mode Oscillator and Modulator` Built-in Analog and Burst Mode Dimming` Built-in Current and Voltage Feedback Control` Built-in Open/Short Lamp Protection` Built-in Dual Mo...

MP1015 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MP1015
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Built-in Burst Mode Oscillator and Modulator
` Built-in Analog and Burst Mode Dimming
` Built-in Current and Voltage Feedback Control
` Built-in Open/Short Lamp Protection
` Built-in Dual Mode Fault Timer
` Built-in Soft-on/Soft-off Burst Mode
` Automatic Recovery from ESD Event
` Wide Range 6 to 22V Battery Voltage with Regulated Lamp Current
` Startup at all voltages and temp without additional components
` Integrated 0.10 Power Switches
` Output Short Circuit Protected
` No High Voltage Ballast Capacitor
` Evaluation Board Available


Application

· LCD Backlight inverter for notebook computers, Web Pads, GPS, or desktop display Figure


Pinout

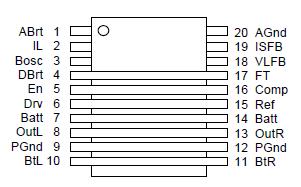

Connection Diagram


Specifications

Input Voltage (VBatt)............  25V
IL, ISFB Input Voltages (VIL, VISFB)..  +/-6V
VLFB Input Voltage (VVLFB) ....-0.3 to 12V
Logic Input Voltages.......   -0.3 to 6.8V
Power Dissipation ............    1.0W
Operating Frequency ..........150KHz
Junction Temperature .......... 150°C
Lead Temperature (Solder) .......260°C
Storage Temperature .... 55°C to 150°C


Description

The MP1015 is a Power IC that offers a true complete solution for driving a Cold Cathode Fluorescent Lamps (CCFL). This Power IC converts unregulated DC voltage to a nearly pure sine wave required to ignite and operate the CCFL. Based on proprietary power topology and control techniques (patented), it greatly increases the power conversion efficiency. The MP1015 can be used with analog or burst mode dimming without any additional external components. The MP1015 offers four distinct performance advantages:
