MNCLC532A-X

Positive Supply Voltage (+Vcc)...........................-0.5V to +7.0V
Negative Supply Voltage (-Vee).........................+0.5V to -7.0V
Differential Voltage Between Any Two Ground Pins.......200mV
Analog Input Voltage Range.................................-Vee to +Vcc
Digital Input Voltage Range..................................-Vee to +Vcc
Maximum Power Dissipation (Pd)
(Note 2)
Ceramic DIP.................................................................. 1.76 W
LCC .................................................................................3.0 W
Output Current (Iout).......................................................36mA
Output Short Circuit Duration (output shorted to GND)..Infinite
Junction Temperature (Tj)..............................................+175 C
Storage Temperature Range............................-65 C to +150 C
Lead Temperature (soldering, 10 seconds)...................+300 C
Thermal Resistance
Junction -to-ambient (ThetaJA)
Ceramic DIP (Still Air) ..........................................................TBD
(500 LFPM) ..........................................................................TBD
LCC (Still Air) .......................................................................TBD
(500 LFPM) ..........................................................................TBD
Junction -to-case (ThetaJC)
Ceramic DIP ........................................................................TBD
LCC..................................................................................... TBD
Package Weight
(Typical)
Ceramic DIP ................................................................2190 mg
LCC .....................................................................................TBD
ESD Tolerance
(Note 3)
ESD Rating ......................................................................500 V
Note 1: Absolute Maximum Ratings are limits beyond which damage to the device may occur. Operating Ratings are conditions for which the device is functional, but do not guarantee specific performance limits. For guaranteed specifications apply only for the test conditions listed. Some performance characteristics may degrade when the device is not operated under the listed test conditions.
Note 2: The maximum power dissipation must be derated at elevated temperatures and is dictated by Tjmax (maximum junction temperature), ThetaJA (package junction to ambient thermal resistance), and TA (ambient temperature). The maximum allowable power dissipation at any temperature is Pdmax = (Tjmax - TA) / ThetaJA or the number given in the Absolute Maximum Ratings, whichever is lower.
Note 3: Human body model, 100pF discharged through 1.5K Ohms.

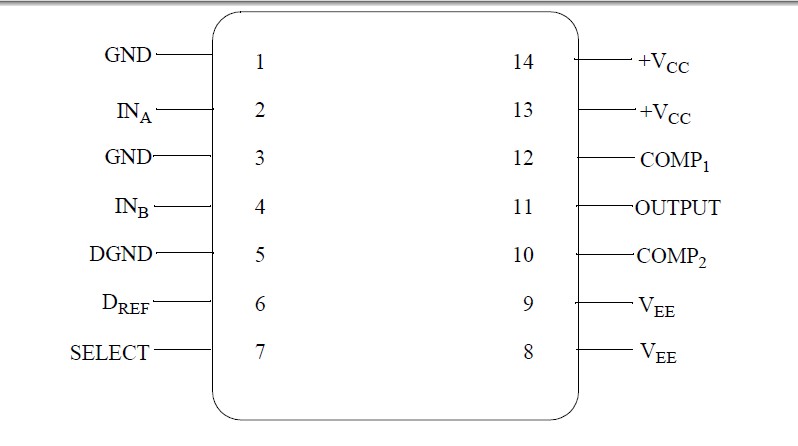

The CLC532 is a high-speed 2:1 multiplexer with active input and output stages. The CLC532 also employs a closed-loop design which dramatically improves accuracy. This accurate monolithic device is constructed using an advanced high-performance bipolar process.

The CLC532 has been specifically designed to provide settling times of 17ns to 0.01%. This design, coupled with the adjustable noise bandwidth, makes the CLC532 an ideal choice for infrared and CCD imaging systems. Channel-to-channel isolation is better than 80dB @ 10MHz. Low distortion (80dBc) and spurious signal levels make the CLC532 a very suitable choice for both I/Q processors and receivers.
