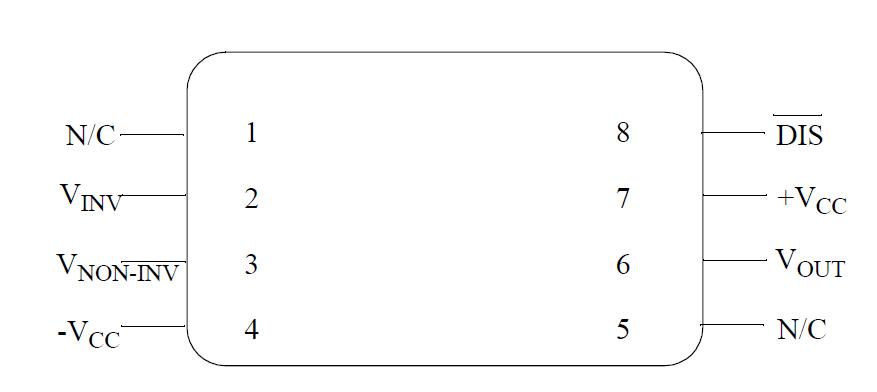

MNCLC430A-X

Supply Voltage (Vcc)....................................................+18V dc
Common Mode Input Voltage (Vcm)..................................+Vcc
Differential Input Voltage.............................................+15V dc
Output Current (Io)....................................................+125 mA
Power Dissipation (Pd)
(Note 2)............................................................................1.2W
Junction Temperature (Tj).............................................+175 C
Storage Temperature Range...........................-65 C to +150 C
Lead Temperature (soldering, 10 seconds)...................+300 C
Thermal Resistance
ThetaJA (Junction-to-Ambient)
Ceramic DIP (Still Air) ..........................................................TBD
(500 LFPM) .........................................................................TBD
SOIC (Still Air) .............................................................180 C/W
(500 LFPM) .................................................................124 C/W
LCC (Still Air) ......................................................................TBD
(500 LFPM) .........................................................................TBD
ThetaJC (Junction-to-Case)
Ceramic DIP ........................................................................TBD
SOIC .............................................................................22 C/W
LCC .....................................................................................TBD
Package Weight
(typical)
Ceramic DIP ........................................................................TBD
SOIC ...................................................................................TBD
LCC .....................................................................................TBD
ESD Tolerance
(Note 3)
ESD Rating ......................................................................4000V
Note 1: Absolute Maximum Ratings are limits beyond which damage to the device may occur. Operating Ratings are conditions for which the device is functional, but do not guarantee specific performance limits. For guaranteed specifications and test conditions see the Electrical Characteristics. The guaranteed specifications apply only for the test conditions listed. Some performance characteristics may degrade when the device is not operated under the listed test conditions.
Note 2: The maximum power dissipation must be derated at elevated temperatures and is dictated by Tjmax (maximum junction temperature), ThetaJA (package junction to ambient thermal resistance), and TA (ambient temperature). The maximum allowable power dissipation at any temperature is Pdmax = (Tjmax - TA)/ThetaJA or the number given in the Absolute Maximum Ratings, whichever is lower.
Note 3: Human body model, 100pF discharged through 1.5K Ohms.

The Comlinear CLC430 is a low-cost, wideband monolithic amplifier for general purpose applications. The CLC430 utilizes Comlinear's patented current feedback circuit topology to provide an op amp with a slew rate of 2000V/uS, 100MHz unity-gain bandwidth and fast output disable function. Like all current feedback op amps, the CLC430 allows the frequency response to be optimized (or adjusted) by the selection of the feedback resistor. For demanding video applications, the 0.1dB bandwidth to 20MHz and differential gain/phase of 0.03%/0.05deg makes the CLC430 the preferred component for broadcast quality NTSC and PAL video systems.

The large voltage swing (28Vpp), continuous output current (85mA) and slew rate (2000V/uS) provide high-fidelity signal conditioning for applications such as CCDs, transmission lines and low impedance circuits. Even driving loads of 100 Ohms, the CLC430 provides very low 2nd and 3rd harmonic distortion at 1MHz (-76/-82dBc). Video distortion, multimedia and general purpose applications will benefit from the CLC430's wide bandwidth and disable feature. Power is reduced and the output becomes a high impedance when disabled. The wide gain range of the CLC430 makes this general purpose op amp an improved solution for circuits such as active filters, differential-to-single-ended drivers, DAC transimpedance amplifiers and MOSFET drivers.
