MNCLC420B-X

Supply Voltage (V+).......................................+7 Vdc
Output Current (Iout)....................................70 mA
Common Mode Input Voltage (Vcm)....................V+
Differential Input Voltage.................................10 V
Power Dissipation (Pd)
(Note 2)......................................................112 mW
Thermal Resistance
(ThetaJA) Junction to Ambient
Ceramic DIP (Still Air) ................................125 C/W
(500 LFPM) .................................................72 C/W
LCC (Still Air) ............................................100 C/W
(500 LFPM) .................................................68 C/W
(ThetaJC) Junction to Case
Ceramic DIP ...............................................23 C/W
LCC ............................................................25 C/W
Junction Temperature (Tj)...........................+175 C
Storage Temperature Range.........-65 C to +150 C
Lead Temperature
(Soldering, 10 seconds) .............................+300 C
Package Weight
(Typical)
Ceramic DIP .............................................1075 mg
LCC ............................................................470 mg
ESD Tolerance
(Note 3)
ESD Rating .................................................2000V
Note 1: Absolute Maximum Ratings are limits beyond which damage to the device may occur. Operating Ratings are conditions for which the device is functional, but do not guarantee specific performance limits. For guaranteed specifications and test conditions see the Electrical Characteristics. The guaranteed specifications apply only for the test conditions listed. Some performance characteristics may degrade when the device is not operated under the listed test conditions.
Note 2: The maximum power dissipation must be derated at elevated temperatures and is dictated by Tjmax (maximum junction temperature), ThetaJA (package junction to ambient thermal resistance), and TA (ambient temperature). The maximum allowable power dissipation at any temperature is Pdmax = (Tjmax - TA)/ThetaJA or the number given in the Absolute Maximum Ratings, whichever is lower.
Note 3: Human body model, 100pF discharged through 1.5K Ohms.

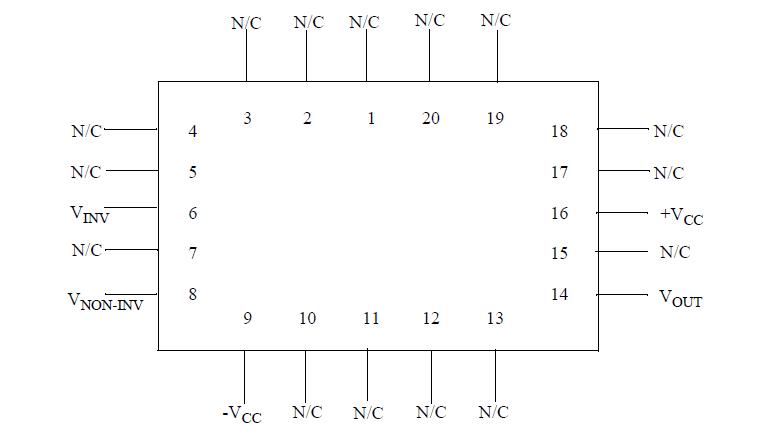

The CLC420B is an operational amplifier designed for applications requiring matched inputs and integration or transimpedance amplification. Utilizing voltage feedback architecture, the CLC420B offers a 300MHz bandwidth, a 1100V/us slew rate and a 4mA supply current (power consumption of 40mW, +5V supplies). Additional benefits of the CLC420B are a 0.5mV input offset voltage and a 4uV/C temperature coefficient.

Applications such as differential amplifiers will benefit from 70dB common mode rejection ratio and an input offset current of 0.2uA(typ). With its unity-gain stability, 2pA/SqRtHz current noise(typ), combined with a settling time of 18ns to 0.01% make the CLC420B ideal for D/A converters, pin diode receivers and photo multiplier amplifiers. All applications will find 70dB power supply rejection ratio attractive.
