MN88831

Features: ·Built-in digital filter using 8-fold oversampling·Built-in tertiary D-å noise shaping D/A converter·Reduced jitter noise through use of switched·capacitor configuration·Built-in analog post filter·Built-in digital de-emphasis circuit·Choice of microcomputer interfaces with selecto...

product image

MN88831 Picture
See larger image
SeekIC No. : 004424721 Detail

MN88831: Features: ·Built-in digital filter using 8-fold oversampling·Built-in tertiary D-å noise shaping D/A converter·Reduced jitter noise through use of switched·capacitor configuration·Built-in ana...

MN88831 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MN88831
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Built-in digital filter using 8-fold oversampling
·Built-in tertiary D-å noise shaping D/A converter
·Reduced jitter noise through use of switched
·capacitor configuration
·Built-in analog post filter
·Built-in digital de-emphasis circuit
·Choice of microcomputer interfaces with selector pin: 3-wired serial interface or I2C interface
·Muting function supporting following settings
    • Pay-per-view flag detection
    • Error frequency detection
    • Detection of control code bit-7
·Built-in general-purpose microcomputer I/O port
·Bit stream input pin supporting 0.4 VP-P input


Application

Satellite broadcasting tuners (BS, CS)


Pinout

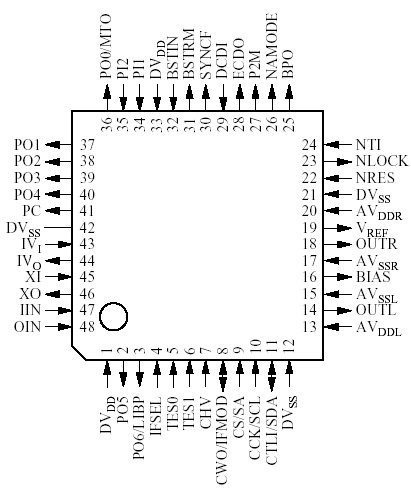

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Power supply voltage VDD 0.3 to +7.0 V
Input voltage VI 0.3 to VDD +0.3 V
Output voltage VO 0.3 to VDD +0.3 V
Output current IO 25 mA
Power dissipation PD 480 mW
Operating temperature Topr 20 to +70 °C
Storage temperature Tstg 55 to +125 °C

Notes:
1. The above ratings represent the maximum values that may be applied without damaging the chip, not the limits for guaranteed eration.
2. If the chip is to be used in the presence of strong electric fields-under a CRT tube, for example-apply shielding to the package surface to ensure proper operation.
3. The power dissipation is for an ambient temperature (Ta) of 70°C.
4. The voltages applied to the pins CCK/SCL, CTLI/SDA, CWO/IFMOD, PO0/MTO, PO1PO5, and PO6/LIBP must be within the range between 0.3V and 5.5V when the power is off.


Description

The MN88831 greatly streamlines set design by incorporating a satellite broadcasting PCM audio decoder, a switched capacitor D/A converter, and analog post filter to a single chip.
