MN66710

Features: • The DAB signal-processing block is integrated on a single chip. (with external 4M DRAMs)• Supports all of DAB modes I, II, III, and IV.• Achieves a processing data rate of up to 1.536 Mbps.• Up to 4 MSC sub-channels can be selected.• MPEG audio decoder (Al...

product image

MN66710 Picture
See larger image
SeekIC No. : 004424686 Detail

MN66710: Features: • The DAB signal-processing block is integrated on a single chip. (with external 4M DRAMs)• Supports all of DAB modes I, II, III, and IV.• Achieves a processing data rate...

MN66710 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MN66710
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The DAB signal-processing block is integrated on a single chip. (with external 4M DRAMs)
• Supports all of DAB modes I, II, III, and IV.
• Achieves a processing data rate of up to 1.536 Mbps.
• Up to 4 MSC sub-channels can be selected.
• MPEG audio decoder (Also supports LSF.)
• Supports the standard audio D/A converter interface.
• Digital audio output unit conforming EIAJ CP-1201 (External driver required.)
• RDI output and dedicated audio RDI input units (For high capacity mode only.)
• F-PAD and X-PAD extraction function
• AIC support function provided in hardware.
• Supports multiplex restructuring with no interruption of the audio signal.
• TII decoding function (basic mode)
• Low supply voltage: 3.3 V±0.3 V
• Low power: Under 500 mW


Application

• DAB (digital audio broadcast) receivers


Pinout

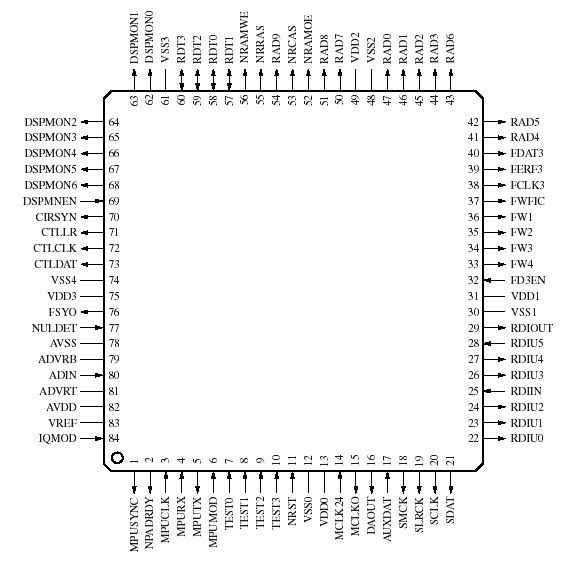

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Supply voltage (digital) VDD − 0.3 to +4.6 V
Supply voltage (analog) AVDD − 0.3 to +4.6 V
5 V reference voltage *1 VREF5 − 0.3 to +5.7 V
Input pin voltage (except for the type A and type B) VI
 − 0.3 to VDD+0.3 V
Input pin voltage (type A) VI5 − 0.3 to +6.0 *2 V
Input pin voltage (type B) VI5 − 0.3 to VREF5+0.3 *2 V
Output pin voltage (except for the type B) VO − 0.3 to VDD+0.3 V
Output pin voltage (type B) VO5 − 0.3 to VREF5+0.3 *2 V
Output current (type HL1) IO ±3 mA
Output current (type HL2) IO ±6 mA
Output current (type HL4) IO ±12 mA
Output current (type HL8) IO ±24 mA
Power dissipation PD 1030 mW
Storage temperature Tstg −55 to +125 °C



Description

The MN66710 is a single-chip digital signal processing LSI for a DAB (digital audio broadcast) receiver, including OFDM demodulation, service selection, error correction, and MPEG audio decoding. It conforms to the European DAB standard (ETS 300 401). Since the MN66710 includes an on-chip A/D converter for the IF signal input, it can be directly input the 3.072 MHz center frequency analog IF signal output from the DAB high-frequency circuit. A DAB receiver is implemented easily by combining MN66710 with a small number of additional components, in particular, 4M DRAMs for working memory, audio D/A converters, microcontrollers, and etc.
