Product Details

Description



Features:

·Built-in 4-fold oversampling digital filter (ripple of only ±0.0072 dB within the supported band and attenuation of 62.7 dB within the cutoff band)
·Internal resolution of 18 bits
·Two's complement input (I2S input code also supported)
·Built-in overflow limiter
·No zero cross distortion
·Sample-and-hold circuit is unnecessary
·Output pin for detecting zero input
·Single 5V power supply


Application

CD players and other digital audio equipment


Pinout

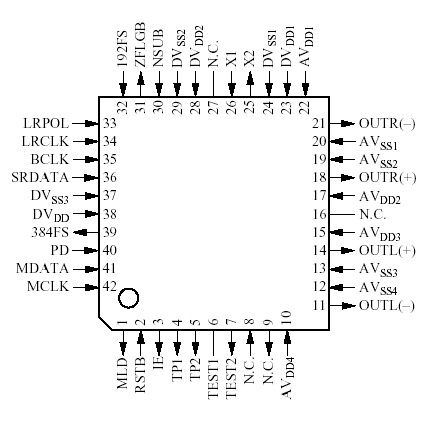

Connection Diagram


Description

The MN6474A is a CMOS digital-to-analog converter with a built-in 16-bit digital filter for pulse code modulation (PCM) digital audio equipment.

MN6474A uses noise shaping technology to convert a digital signal into a PWM signal.

MN6474A contains a 4-fold oversampling digital filter that permits simplification of the low pass filter after the D/A converter, thus greatly reducing the power consumption of the entire D/A conversion system.The chip provides both regular and inverted phase outputs for both channels.The chip contributes to cost and size reductions for CD players and other digital audio equipment.
