Product Details

Description



Features:

• Effective pixel number 500 (horizontal) × 582 (vertical)
• High sensitivity
• Broad dynamic range
• Low smear
• Electronic shutter


Application

• Camcorders

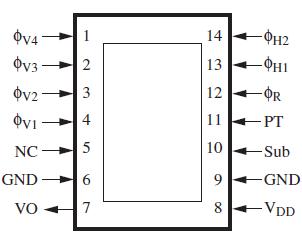

Pinout

Connection Diagram


Specifications

Parameter Absolute maximum rating Operating condition Unit
Lower limit Upper limit Min Typ Max
VDD − 0.2 18.0 14.5 15.0 15.5 V
VPT
*3, 4		 −10.0 0.2 −8.3 −8.0 −7.7
GND (Reference voltage)   0
VR High-Low
   8.0 3.0 3.3 3.6
Bias (Supplied internally)
VH1 High

   8.0 3.0 3.3 3.6
Low − 0.2   − 0.05 0 0.05
VH2 High
   8.0 3.0 3.0 3.6
Low − 0.2   − 0.05 0 0.05
VSub *2 (Supplied internally)
VSub*1 − 0.2 45.0 22.0 23.0 24.0
VV1*3, 4High   18.0 14.5 15.0 15.5
Middle     − 0.2 0 0.2
Low −9.0   −8.3 −8.0 −7.7
VV2*3, 4 Middle   15.0 − 0.2 0 0.2
Low −9.0   −8.3 −8.0 −7.7
VV3*3, 4 High   18.0 14.5 15.0 15.5
Middle     − 0.2 0 0.2
Low −9.0   −8.3 −8.0 −7.7
VV4*3, 4 Middle   15.0 − 0.2 0 0.2
Low −9.0   −8.3 −8.0 −7.7
Operating temperature −10 60   25   °C
Storage temperature −30 80       °C
