MMSZ5254B

Zener Diodes 27V 0.5W Zener

product image

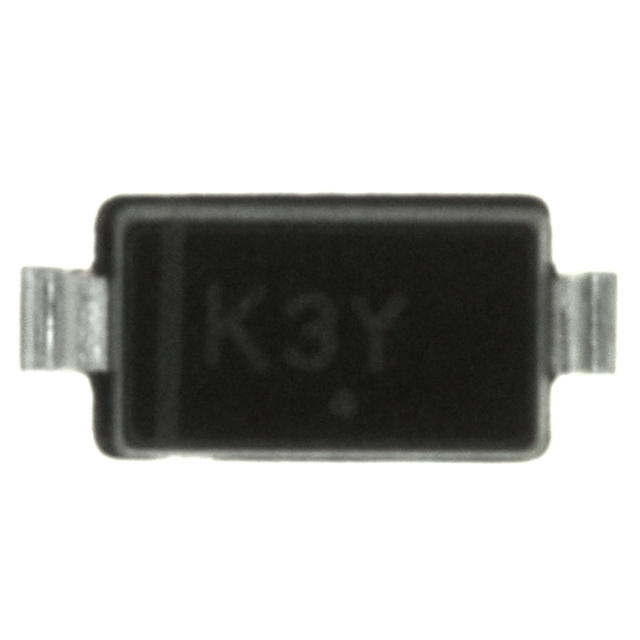

MMSZ5254B Picture
See larger image
SeekIC No. : 00268961 Detail

MMSZ5254B: Zener Diodes 27V 0.5W Zener

MMSZ5254B Data Sheet

floor Price/Ceiling Price

US $ .05~.16 / Piece | Get Latest Price
Part Number:
MMSZ5254B
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.16
  • $.1
  • $.08
  • $.05
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Zener Voltage : 27 V Voltage Tolerance : 5 %
Zener Current : 4.6 mA Power Dissipation : 500 mW
Maximum Reverse Leakage Current : 0.1 uA Maximum Zener Impedance : 41 Ohms
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOD-123 Packaging : Reel

Description

Voltage Temperature Coefficient :
Voltage Tolerance : 5 %
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Reverse Leakage Current : 0.1 uA
Power Dissipation : 500 mW
Package / Case : SOD-123
Zener Voltage : 27 V
Maximum Zener Impedance : 41 Ohms
Zener Current : 4.6 mA


Features:

Planar Die Construction
500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes




Specifications

Part Number MMSZ5254B
Power Rating (mW) 500
NomVZ 27
@ IZT (mA) 5
Tol V (typ) (%) 5
IR (µA) 0.1


Characteristic Symbol Value Unit
Forward Voltage (Note 2) @ IF = 10mA VF 0.9 V
Power Dissipation (Note 1) Pd 500 mW
Thermal Resistance, Junction to Ambient Air (Note 1) RJA 350 /W
Operating and Storage Temperature Range Tj, TSTG -65 to +150
Notes: 1. Device mounted on ceramic PCB; 7.6 mm x 9.4 mm x 0.87 mm with pad areas 25 mm2.
2. Short duration test pulse used to minimize self-heating effect.




Parameters:

Technical/Catalog InformationMMSZ5254B
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Voltage - Zener (Nom) (Vz)27V
Power - Max500mW
Impedance (Max) (Zzt)41 Ohm
Voltage - Forward (Vf) (Max) @ If900mV @ 10mA
Current - Reverse Leakage @ Vr100nA @ 21V
Tolerance±5%
Mounting TypeSurface Mount
Package / CaseSOD-123
PackagingTape & Reel (TR)
Operating Temperature-55°C ~ 150°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MMSZ5254B
MMSZ5254B
MMSZ5254BFS ND
MMSZ5254BFSND
MMSZ5254BFS
