MMSZ5238B

Zener Diodes 8.7V 0.5W Zener

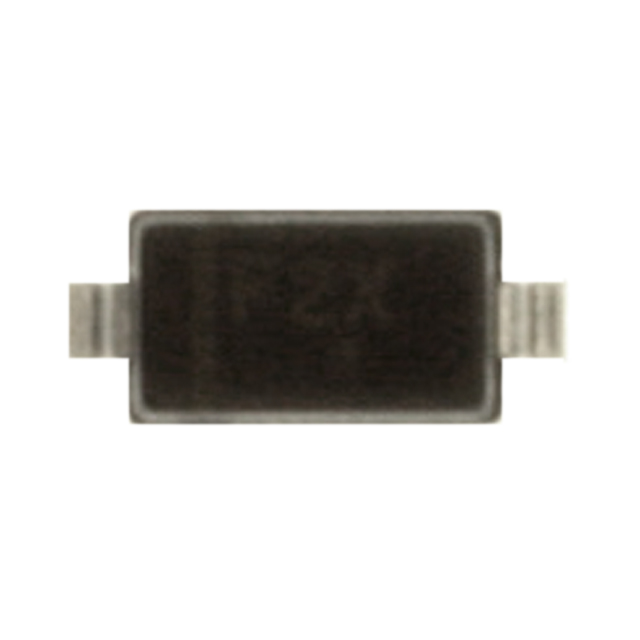

product image

MMSZ5238B Picture
See larger image
SeekIC No. : 00267530 Detail

MMSZ5238B: Zener Diodes 8.7V 0.5W Zener

MMSZ5238B Data Sheet

floor Price/Ceiling Price

US $ .05~.16 / Piece | Get Latest Price
Part Number:
MMSZ5238B
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.16
  • $.11
  • $.08
  • $.05
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Zener Voltage : 8.7 V Voltage Tolerance : 5 %
Zener Current : 20 mA Power Dissipation : 500 mW
Maximum Reverse Leakage Current : 3 uA Maximum Zener Impedance : 8 Ohms
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOD-123 Packaging : Reel

Description

Voltage Temperature Coefficient :
Voltage Tolerance : 5 %
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Zener Current : 20 mA
Power Dissipation : 500 mW
Maximum Zener Impedance : 8 Ohms
Maximum Reverse Leakage Current : 3 uA
Package / Case : SOD-123
Zener Voltage : 8.7 V


Specifications

Part Number MMSZ5238B
Power Rating (mW) 500
NomVZ 8.7
@ IZT (mA) 20
Tol V (typ) (%) 5
IR (µA) 3





Parameters:

Technical/Catalog InformationMMSZ5238B
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Voltage - Zener (Nom) (Vz)8.7V
Power - Max500mW
Impedance (Max) (Zzt)8 Ohm
Voltage - Forward (Vf) (Max) @ If900mV @ 10mA
Current - Reverse Leakage @ Vr3A @ 6.5V
Tolerance±5%
Mounting TypeSurface Mount
Package / CaseSOD-123
PackagingTape & Reel (TR)
Operating Temperature-55°C ~ 150°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MMSZ5238B
MMSZ5238B
