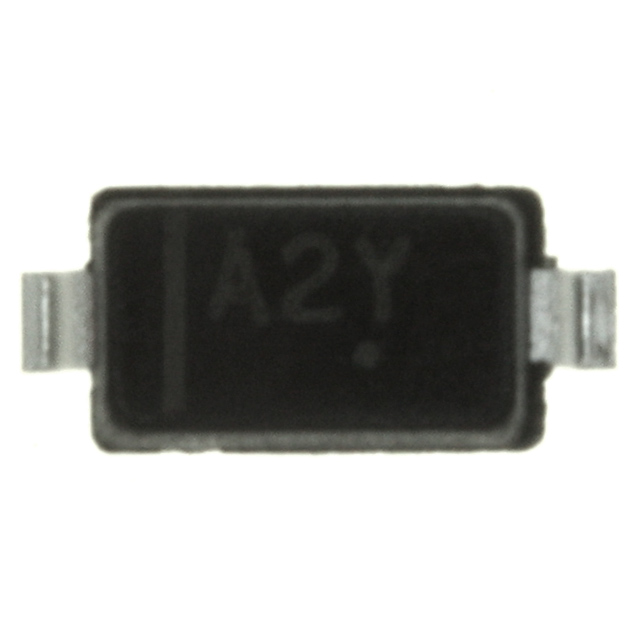

See larger image

SeekIC No. : 00282804 Detail

MMSZ12T1: Zener Diodes 12V 500mW

MMSZ12T1 Data Sheet

Get Latest Price

Part Number:: MMSZ12T1
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMSZ10 evaluate
Zener Diodes 10 Volt 500mW 5%
MMSZ10B evaluate
Zener Diodes 10 Volt 500mW 2%
MMSZ10ET1 evaluate
US $.03 - .03 / Piece

DIODE ZENER 10V 500MW SOD-123

Product Details

Quick Details

Zener Voltage :	12 V	Voltage Tolerance :	5 %
Zener Current :	10 mA	Power Dissipation :	500 mW
Maximum Reverse Leakage Current :	0.1 uA	Maximum Zener Impedance :	25 Ohms
Maximum Operating Temperature :	+ 150 C	Mounting Style :	SMD/SMT
Package / Case :	SOD-123	Packaging :	Reel

Description

Voltage Temperature Coefficient :
Voltage Tolerance : 5 %
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Zener Impedance : 25 Ohms
Zener Voltage : 12 V
Maximum Reverse Leakage Current : 0.1 uA
Power Dissipation : 500 mW
Zener Current : 10 mA
Package / Case : SOD-123

Parameters:

Technical/Catalog Information	MMSZ12T1
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Voltage - Zener (Nom) (Vz)	12V
Power - Max	500mW
Impedance (Max) (Zzt)	25 Ohm
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Current - Reverse Leakage @ Vr	100nA @ 8V
Tolerance	±5%
Mounting Type	Surface Mount
Package / Case	SOD-123
Packaging	Tape & Reel (TR)
Operating Temperature	-55°C ~ 150°C
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MMSZ12T1 MMSZ12T1 MMSZ12T1OSTR ND MMSZ12T1OSTRND MMSZ12T1OSTR
