MMST3904

Features: ·Epitaxial Planar Die Construction·Complementary PNP Type Available (MMST3906) ·Ultra-Small Surface Mount PackageSpecifications Characteristic Symbol MMST3904 Unit Collector-Base Voltage VCBO 60 V Collector-Emitter Voltage VCEO 40 V Emitter-Base...

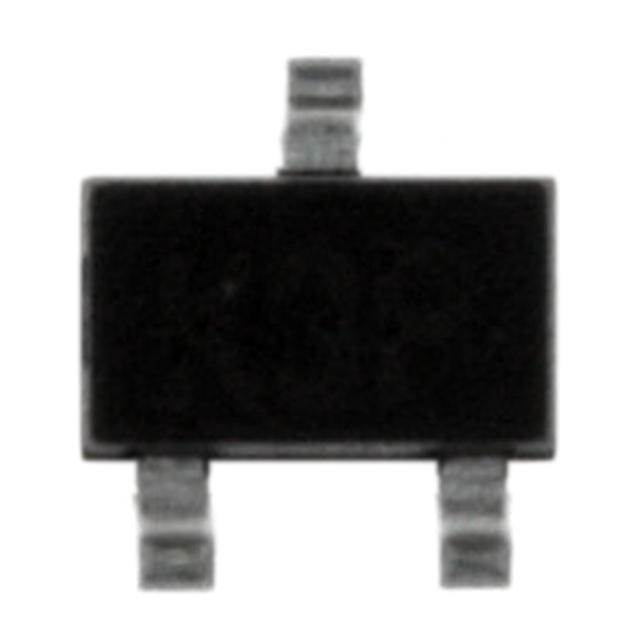

product image

MMST3904 Picture
See larger image
SeekIC No. : 004424309 Detail

MMST3904: Features: ·Epitaxial Planar Die Construction·Complementary PNP Type Available (MMST3906) ·Ultra-Small Surface Mount PackageSpecifications Characteristic Symbol MMST3904 Unit Colle...

MMST3904 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MMST3904
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Epitaxial Planar Die Construction
·Complementary PNP Type Available (MMST3906)
·Ultra-Small Surface Mount Package






Specifications

Characteristic
Symbol
MMST3904
Unit
Collector-Base Voltage
VCBO
60
V
Collector-Emitter Voltage
VCEO
40
V
Emitter-Base Voltage
VEBO
6.0
V
Collector Current - Continuous (Note 1)
IC
200
mA
Power Dissipation (Note 1)
Pd
200
mW
Thermal Resistance, Junction to Ambient (Note 1)
RJA
625
K/W
Operating and Storage and Temperature Range
Tj,TSTG
-55 to +150


Notes:
` Valid provided that terminals are kept at ambient temperature.
` Pulse test: Pulse width 300s, duty cycle 2%.



Part Number MMST3904
Product Type NPN
VCEO (V) 40
IC(A) 0.2
ICM (A) -
PD (W) 0.2
hFE Min 100
hFE Max 300
@I C (A) 0.01
VCE(SAT) Max (mV) 250
@ IC (A) 0.01
@ IB (mA) 1
fT Min (MHz) 300
RCE (SAT) (m) -
