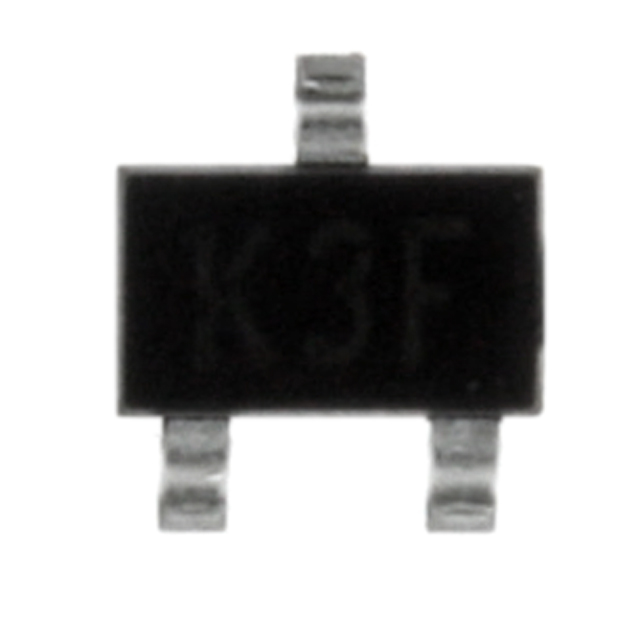

See larger image

SeekIC No. : 00216162 Detail

MMST3904-7: Transistors Bipolar (BJT) 40V 200mW

MMST3904-7 Data Sheet

Get Latest Price

Part Number:: MMST3904-7
Mfg:: Diodes Inc.
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMST2222A evaluate
Features: ·Epitaxial Planar Die Construction ·Complementary PNP Type Available (MMST2907A) ·Ultra-...
MMST2222A-7 evaluate
Transistors Bipolar (BJT) 40V 200mW
MMST2222A-7-F evaluate
US $.05 - .3 / Piece

Transistors Bipolar (BJT) 40V 200mW

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	40 V
Emitter- Base Voltage VEBO :	6 V	Maximum DC Collector Current :	0.2 A
DC Collector/Base Gain hfe Min :	100	Configuration :	Single
Maximum Operating Frequency :	300 MHz	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-323
Packaging :	Reel

Description

Transistor Polarity : NPN
DC Collector/Base Gain hfe Min : 100
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Emitter- Base Voltage VEBO : 6 V
Package / Case : SOT-323
Maximum Operating Frequency : 300 MHz
Collector- Emitter Voltage VCEO Max : 40 V
Maximum DC Collector Current : 0.2 A

Parameters:

Technical/Catalog Information	MMST3904-7
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	200mA
Power - Max	200mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Vce Saturation (Max) @ Ib, Ic	250mV @ 1mA, 10mA
Frequency - Transition	300MHz
Current - Collector Cutoff (Max)	50nA
Mounting Type	Surface Mount
Package / Case	SC-70-3, SOT-323-3
Packaging	Cut Tape (CT)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MMST3904 7 MMST39047 MMST3904DICT ND MMST3904DICTND MMST3904DICT
