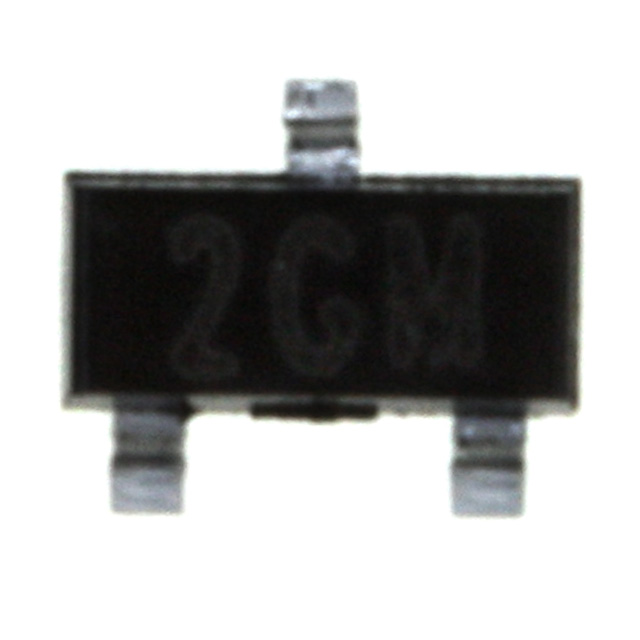

MMBTA56WT1G: Transistors Bipolar (BJT) 500mA 80V PNP

MMBTA56WT1G Data Sheet

US $ .11~.23 / Piece | Get Latest Price

Part Number:: MMBTA56WT1G
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.23
$.2
$.14
$.11

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMBT 2222A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.6A
MMBT 2907A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT PNP 60V 0.6A
MMBT 3904 LT1 evaluate
US $.03 - .08 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.2A

Product Details

Quick Details

Transistor Polarity :	PNP	Collector- Emitter Voltage VCEO Max :	80 V
Emitter- Base Voltage VEBO :	4 V	Maximum DC Collector Current :	0.5 A
DC Collector/Base Gain hfe Min :	100 at 10 mA at 1 V	Configuration :	Single
Maximum Operating Frequency :	50 MHz (Min)	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SC-70
Packaging :	Reel

Description

Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : PNP
Package / Case : SC-70
Collector- Emitter Voltage VCEO Max : 80 V
Emitter- Base Voltage VEBO : 4 V
Maximum DC Collector Current : 0.5 A
DC Collector/Base Gain hfe Min : 100 at 10 mA at 1 V
Maximum Operating Frequency : 50 MHz (Min)

Parameters:

Technical/Catalog Information	MMBTA56WT1G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	80V
Current - Collector (Ic) (Max)	500mA
Power - Max	150mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Vce Saturation (Max) @ Ib, Ic	250mV @ 10mA, 100mA
Frequency - Transition	50MHz
Current - Collector Cutoff (Max)	100nA
Mounting Type	Surface Mount
Package / Case	SC-70-3, SOT-323-3
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MMBTA56WT1G MMBTA56WT1G MMBTA56WT1GOS ND MMBTA56WT1GOSND MMBTA56WT1GOS
