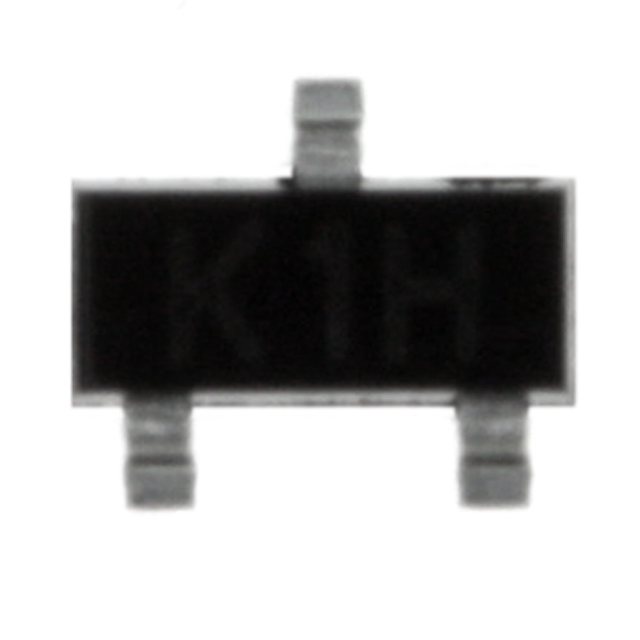

See larger image

SeekIC No. : 00215284 Detail

MMBTA06LT1: Transistors Bipolar (BJT) 500mA 80V NPN

MMBTA06LT1 Data Sheet

Get Latest Price

Part Number:: MMBTA06LT1
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMBT 2222A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.6A
MMBT 2907A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT PNP 60V 0.6A
MMBT 3904 LT1 evaluate
US $.03 - .08 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.2A

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	80 V
Emitter- Base Voltage VEBO :	4 V	Maximum DC Collector Current :	0.5 A
DC Collector/Base Gain hfe Min :	100 at 10 mA at 1 V	Configuration :	Single
Maximum Operating Frequency :	100 MHz (Min)	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-23
Packaging :	Reel

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Package / Case : SOT-23
Collector- Emitter Voltage VCEO Max : 80 V
Emitter- Base Voltage VEBO : 4 V
Maximum DC Collector Current : 0.5 A
DC Collector/Base Gain hfe Min : 100 at 10 mA at 1 V
Maximum Operating Frequency : 100 MHz (Min)

Specifications

Rating	Symbol	Value	Unit
CollectorEmitter Voltage MMBTA05LT1 MMBTA06LT1	V_CEO	60 80	Vdc
CollectorBase Voltage MMBTA05LT1 MMBTA06LT1	V_CBO	60 80	Vdc
EmitterBase Voltage	V_EBO	4.0	Vdc
Collector Current Continuous	I_C	500	mAdc

Parameters:

Technical/Catalog Information	MMBTA06LT1
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	80V
Current - Collector (Ic) (Max)	500mA
Power - Max	225mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Vce Saturation (Max) @ Ib, Ic	250mV @ 10mA, 100mA
Frequency - Transition	100MHz
Current - Collector Cutoff (Max)	100nA
Mounting Type	Surface Mount
Package / Case	SOT-23-3, TO-236-3, Micro3?, SSD3, SST3
Packaging	Cut Tape (CT)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MMBTA06LT1 MMBTA06LT1 MMBTA06LT1OSCT ND MMBTA06LT1OSCTND MMBTA06LT1OSCT
