MMBT5087LT1 Selling Leads, Price trend , ON Semiconductor, MMBT5087LT1 DataSheet download, circuit diagram from SeekIC.com

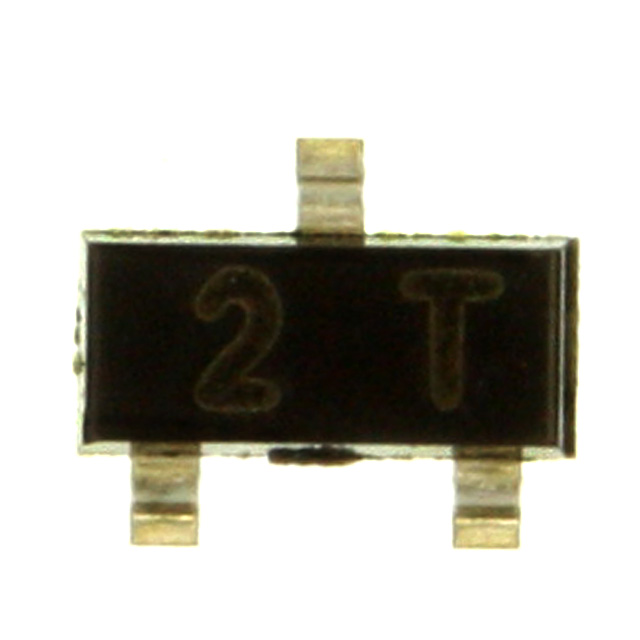

See larger image

SeekIC No. : 00211804 Detail

MMBT5087LT1: Transistors Bipolar (BJT) 50mA 50V PNP

MMBT5087LT1 Data Sheet

Get Latest Price

Part Number:: MMBT5087LT1
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMBT 2222A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.6A
MMBT 2907A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT PNP 60V 0.6A
MMBT 3904 LT1 evaluate
US $.03 - .08 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.2A

Product Details

Quick Details

Transistor Polarity :	PNP	Collector- Emitter Voltage VCEO Max :	50 V
Emitter- Base Voltage VEBO :	3 V	Maximum DC Collector Current :	0.05 A
DC Collector/Base Gain hfe Min :	250 at 0.1 mA at 5 V	Configuration :	Single
Maximum Operating Frequency :	40 MHz (Min)	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-23
Packaging :	Reel

Description

Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : PNP
Collector- Emitter Voltage VCEO Max : 50 V
Package / Case : SOT-23
Emitter- Base Voltage VEBO : 3 V
Maximum Operating Frequency : 40 MHz (Min)
Maximum DC Collector Current : 0.05 A
DC Collector/Base Gain hfe Min : 250 at 0.1 mA at 5 V

Specifications

Rating	Symbol	Value	Unit
CollectorEmitter Voltage	V CEO	50	Vdc
CollectorBase Voltage	V CBO	50	Vdc
EmitterBase Voltage	V EBO	3.0	Vdc
Collector Current - Continuous	I C	50	mAdc

Parameters:

Technical/Catalog Information	MMBT5087LT1
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	50mA
Power - Max	225mW
DC Current Gain (hFE) (Min) @ Ic, Vce	250 @ 100A, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 1mA, 10mA
Frequency - Transition	40MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	SOT-23-3, TO-236-3, Micro3?, SSD3, SST3
Packaging	Cut Tape (CT)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MMBT5087LT1 MMBT5087LT1 MMBT5087LT1OSCT ND MMBT5087LT1OSCTND MMBT5087LT1OSCT
