MMBT4124

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Emitter- Base Voltage VEBO : 5 V
Maximum Operating Frequency : 300 MHz

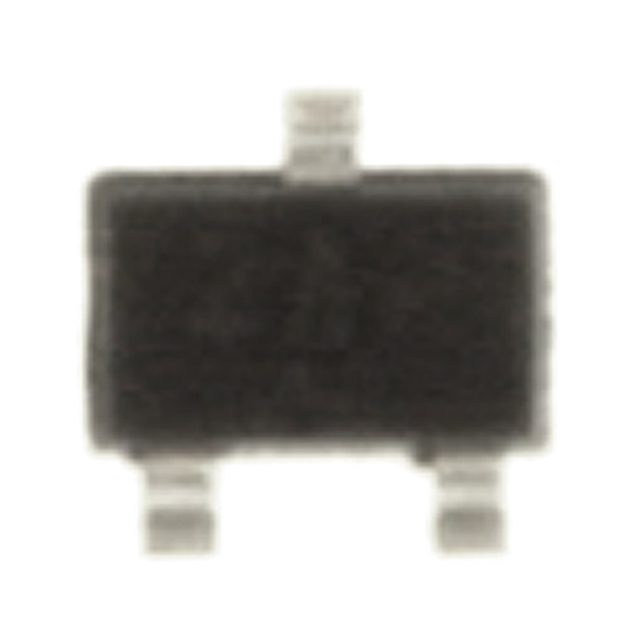

Package / Case : SOT-23
Maximum DC Collector Current : 0.2 A
Collector- Emitter Voltage VCEO Max : 25 V
DC Collector/Base Gain hfe Min : 120


Specifications

Parameter	Symbol	Ratings	UNIT
Collector-base voltage	VCBO	25	V
Collector-emitter voltage	VCEO	30	V
Emitter-base voltage	VEBO	5.0	V
Collector current	IC	200	A
Jumction temperature	Tj	55 to +150
Storage temperature	Tstg	55 to +150

NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.




Parameters:

Technical/Catalog Information	MMBT4124
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	25V
Current - Collector (Ic) (Max)	200mA
Power - Max	350mW
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 2mA, 1V
Vce Saturation (Max) @ Ib, Ic	300mV @ 5mA, 50mA
Frequency - Transition	300MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	SOT-23
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MMBT4124 MMBT4124 MMBT4124FS ND MMBT4124FSND MMBT4124FS
