MMBT3906T-7-F, US $ .05-.2 , Diodes Inc., MMBT3906T-7-F DataSheet download, circuit diagram from SeekIC.com

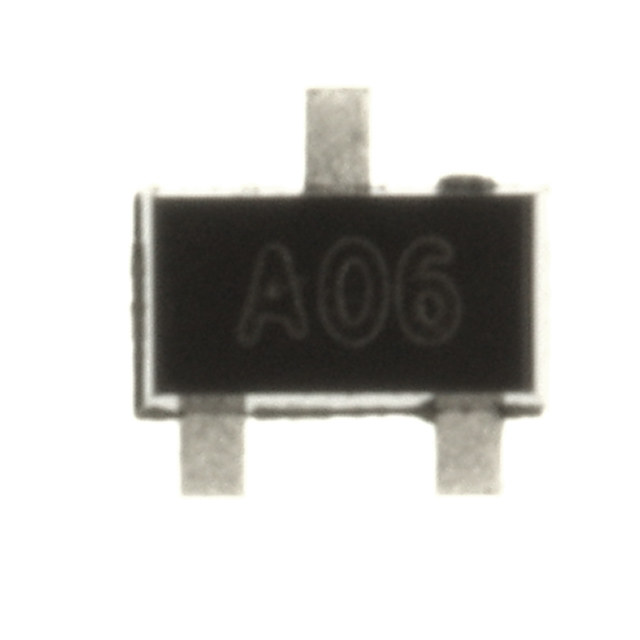

See larger image

SeekIC No. : 00206337 Detail

MMBT3906T-7-F: Transistors Bipolar (BJT) -40V 150mW

MMBT3906T-7-F Data Sheet

US $ .05~.2 / Piece | Get Latest Price

Part Number:: MMBT3906T-7-F
Mfg:: Diodes Inc.
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.2
$.13
$.06
$.05

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMBT 2222A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.6A
MMBT 2907A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT PNP 60V 0.6A
MMBT 3904 LT1 evaluate
US $.03 - .08 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.2A

Product Details

Quick Details

Transistor Polarity :	PNP	Collector- Emitter Voltage VCEO Max :	40 V
Emitter- Base Voltage VEBO :	5 V	Maximum DC Collector Current :	0.2 A
DC Collector/Base Gain hfe Min :	100	Configuration :	Single
Maximum Operating Frequency :	250 MHz (Min)	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-523
Packaging :	Reel

Description

DC Collector/Base Gain hfe Min : 100
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : PNP
Emitter- Base Voltage VEBO : 5 V
Collector- Emitter Voltage VCEO Max : 40 V
Maximum DC Collector Current : 0.2 A
Maximum Operating Frequency : 250 MHz (Min)
Package / Case : SOT-523

Parameters:

Technical/Catalog Information	MMBT3906T-7-F
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	200mA
Power - Max	150mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Vce Saturation (Max) @ Ib, Ic	250mV @ 1mA, 10mA
Frequency - Transition	250MHz
Current - Collector Cutoff (Max)	50nA
Mounting Type	Surface Mount
Package / Case	SOT-523
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MMBT3906T 7 F MMBT3906T7F MMBT3906T FDITR ND MMBT3906TFDITRND MMBT3906T-FDITR
