MMBT3904-TP, US $ .02-.17 , Micro Commercial Components (MCC), MMBT3904-TP DataSheet download, circuit diagram from SeekIC.com

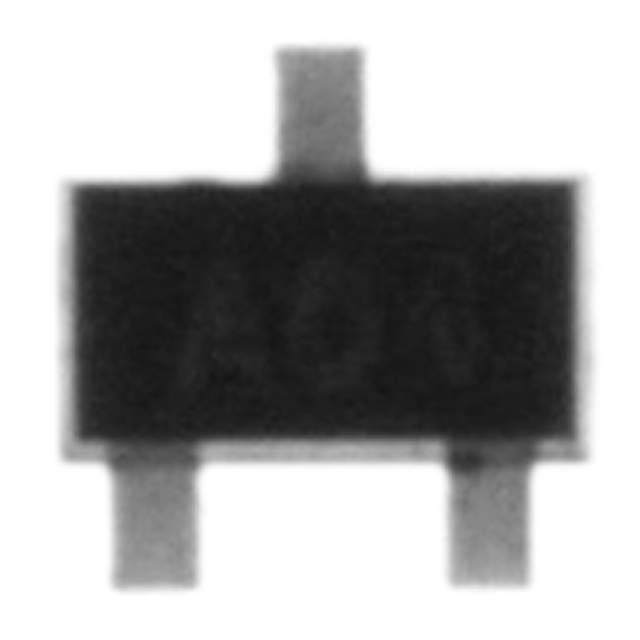

See larger image

SeekIC No. : 00206689 Detail

MMBT3904-TP: Transistors Bipolar (BJT) 40V

MMBT3904-TP Data Sheet

US $ .02~.17 / Piece | Get Latest Price

Part Number:: MMBT3904-TP
Mfg:: Micro Commercial Components (MCC)
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.17
$.09
$.05
$.02

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MMBT 2222A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.6A
MMBT 2907A LT1 evaluate
US $.04 - .3 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT PNP 60V 0.6A
MMBT 3904 LT1 evaluate
US $.03 - .08 / Piece

Transistors Bipolar (BJT) AF TRANS GP BJT NPN 40V 0.2A

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	40 V
Emitter- Base Voltage VEBO :	6 V	Maximum DC Collector Current :	0.2 A
DC Collector/Base Gain hfe Min :	40 at 0.1 mA at 1 V	Configuration :	Single
Maximum Operating Frequency :	300 MHz	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-23
Packaging :	Reel

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Emitter- Base Voltage VEBO : 6 V
Maximum Operating Frequency : 300 MHz
Package / Case : SOT-23
Collector- Emitter Voltage VCEO Max : 40 V
Maximum DC Collector Current : 0.2 A
DC Collector/Base Gain hfe Min : 40 at 0.1 mA at 1 V

Parameters:

Technical/Catalog Information	MMBT3904-TP
Vendor	Micro Commercial Co
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	200mA
Power - Max	350mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Vce Saturation (Max) @ Ib, Ic	200mV @ 1mA, 10mA
Frequency - Transition	300MHz
Current - Collector Cutoff (Max)	50nA
Mounting Type	Surface Mount
Package / Case	SOT-23
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MMBT3904 TP MMBT3904TP MMBT3904TPMSTR ND MMBT3904TPMSTRND MMBT3904TPMSTR
