MMBF2202PT1

MOSFET 20V 300mA P-Channel

product image

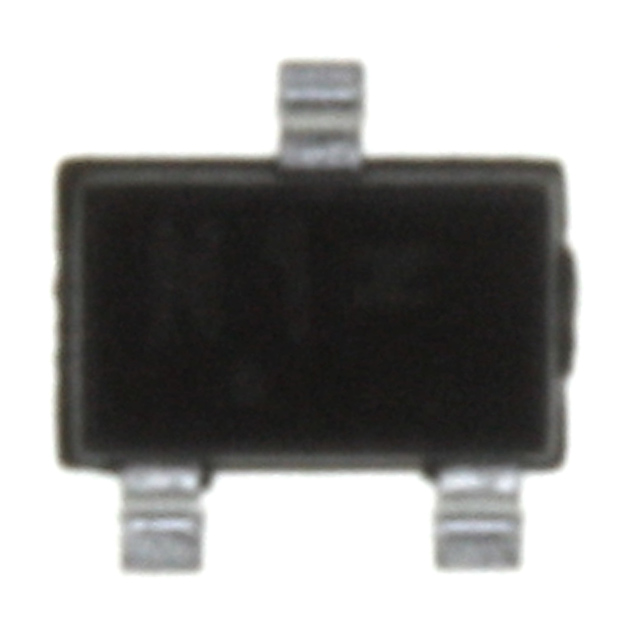

MMBF2202PT1 Picture
See larger image
SeekIC No. : 00166109 Detail

MMBF2202PT1: MOSFET 20V 300mA P-Channel

MMBF2202PT1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MMBF2202PT1
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 0.3 A
Resistance Drain-Source RDS (on) : 2200 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SC-70 Packaging : Reel

Description

Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Package / Case : SC-70
Continuous Drain Current : 0.3 A
Resistance Drain-Source RDS (on) : 2200 mOhms


Specifications

Rating
Symbol
Value
Unit
DraintoSource Voltage
VDSS
20
Vdc
GatetoSource Voltage Continuous
VGS
± 20
Vdc
Drain Current
Continuous @ TA = 25
Continuous @ TA = 70
Pulsed Drain Current (tp 10 s)

ID
ID
IDM

300
240
750
mAdc
Total Power Dissipation @ TA = 25(1)
Derate above 25
PD
150
1.2
mW
mW/°C
Operating and Storage Temperature
Range
TJ, Tstg
55 to
150

Thermal Resistance JunctiontoAmbient
RJA
833
/W
Maximum Lead Temperature for Soldering
Purposes, for 10 seconds
TL
260



1. Mounted on G10/FR4 glass epoxy board using minimum recommended footprint.




Parameters:

Technical/Catalog InformationMMBF2202PT1
VendorON Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityP-Channel
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25° C300mA
Rds On (Max) @ Id, Vgs2.2 Ohm @ 200mA, 10V
Input Capacitance (Ciss) @ Vds 50pF @ 5V
Power - Max150mW
PackagingCut Tape (CT)
Gate Charge (Qg) @ Vgs2.7nC @ 10V
Package / CaseSC-70-3, SOT-323-3
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MMBF2202PT1
MMBF2202PT1
MMBF2202PT1OSCT ND
MMBF2202PT1OSCTND
MMBF2202PT1OSCT
