Product Details

Description

Features:

· Fast Switching Speed
· Ultra-Small Surface Mount Package
· For General Purpose Switching Applications
· High Conductance

Pinout

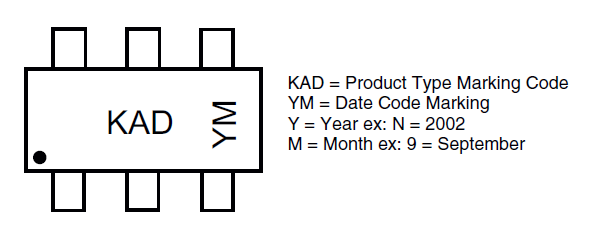

Connection Diagram

Specifications

Part Number	MMBD4448HTM
Power Rating (mW)	350
Total Capacitance C_T (pF)	3.5
Peak Repetitive Reverse Voltage V_RRM (V)	80
Reverse Recovery Time t_rr (ns)	4
Max Average Rectifier Current I_O (mA)	250
Max Peak Forward Surge Current I_FSM (A)	4
Forward Voltage Drop V_F (V)	1
Max Reverse Current I_R (µA)	0.1

Characteristic	Symbol	Value	Unit
Non-Repetitive Peak Reverse Voltage	V_RM	100	V
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	V_RRM V_RWM V_R	80	V
RMS Reverse Voltage	V_R(RMS)	57	V
Forward Continuous Current	I_FM	500	mA
Average Rectified Output Current	I_O	250	mA
Non-Repetitive Peak Forward Surge Current @t=1.0s @ t = 1.0s	I_FSM	4.0 2.0	A
Power Dissipation (Note 1)	P_d	225	mW
Thermal Resistance Junction to Ambient Air (Note 1)	R_JA	555	/W
Operating and Storage Temperature Range	T_j,T_STG	-65 to +150
