Output Type
:
Digital Output - Number of Bits
:
Supply Current
:
Package / Case
: QFN-16
Supply Voltage - Max
: 3.6 V
Maximum Operating Temperature
: + 85 C
Packaging
: Bulk
Supply Voltage - Min
: 2.2 V
Sensing Axis
: X, Y
Minimum Operating Temperature
: - 20 C
Acceleration
: 1.5 g, 2 g, 4 g, 6 g
Sensitivity
: 800 mV/g, 600 mV/g, 300m V/g, 200 mV/g
Features: • Selectable Sensitivity (1.5 g / 2 g / 4 g / 6 g)
• Low Current Consumption: 500 A
• Sleep Mode: 3 A
• Low Voltage Operation: 2.2 V 3.6 V
• 6 mm x 6 mm x 1.45 mm QFN
• High Sensitivity (800 mV/g @1.5 g)
• Fast Turn On Time
• Integral Signal Conditioning with Low Pass Filter
• Robust Design, High Shocks Survivability
• Pb-Free Terminations
• Environmentally Preferred Package
• Low CostApplication• Laptop PC: Freefall Detection, Anti-Theft
• Cell Phone: Image Stability, Text Scroll, Motion Dialing, E-Compass
• PDA: Text Scroll
• Navigation and Dead Reckoning: E-Compass Tilt Compensation
• Gaming: Tilt and Motion Sensing, Event Recorder
• Robotics: Motion Sensing

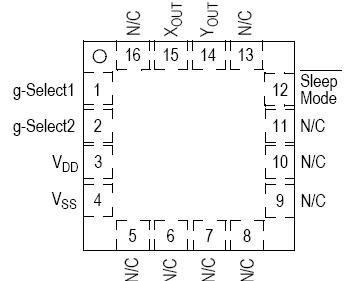

• Appliances: Vibration SensingPinout
Specifications
| Rating |
Symbol |
Value |
Unit |
| Maximum Acceleration (all axis) |
gmax |
±2000 |
g |
| Supply Voltage |
VDD |
0.3 to +3.6 |
V |
| Drop Test(1) |
Ddrop |
1.8 |
m |
| Storage Temperature Range |
Tstg |
40 to +125 |
°C |
DescriptionThe MMA6270Q low cost capacitive micromachined accelerometer features signal conditioning, a 1-pole low pass filter, temperature compensation and g- Select which allows for the selection among four sensitivities. Zero-g offset full scale span and filter cut-off are factory set and require no external devices. Includes a Sleep Mode that makes MMA6270Q ideal for handheld battery powered electronics.
Parameters: | Technical/Catalog Information | MMA6270Q |
| Vendor | Freescale Semiconductor |
| Category | Sensors, Transducers |
| Acceleration Range | ±1.5g, 2g, 4g, 6g |
| Voltage Rating | 3.3V |
| Sensitivity | 800, 600, 300 or 200 mV/g |
| Features | Linear |
| Package / Case | 16-QFN |
| Axis | Two |
| Interface | Analog |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MMA6270Q
MMA6270Q
|
MMA6270Q Data Sheet
