MM74C174

Features:

· Wide supply voltage range: 3.0V to 15V
· Guaranteed noise margin: 1.0V
· High noise immunity: 0.45 V_CC (typ.)
· Low power TTL compatibility: Fan out of 2 driving 74L

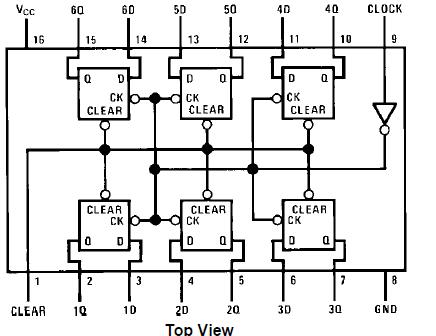

Pinout




Specifications

Voltage at Any Pin	-0.3V to VCC +0.3V
Operating Temperature Range	-40 to +85
Storage Temperature Range	-65 to +150
Power Dissipation (PD)
Dual-In-Line	700 mW
Small Outline	500 mW
Operating VCC Range	3.0V to 15V
Absolute Maximum VCC	18V
Lead Temperature
(Soldering, 10 seconds)	260

Note 1: "Absolute Maximum Ratings" are those values beyond which the safety of the device cannot be guaranteed. Except for "Operating Temperature Range" they are not meant to imply that the devices should be operated at these limits. The Electrical Characteristics table provides conditions for actual device operation.

Description

The MM74C174 hex D-type flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors. All have a direct clear input. Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse. Clear is independent of clock and accomplished by a low level at the clear input. All inputs of MM74C174 are protected by diodes to V_CC and GND.
