Product Details

Description



Features:

· Supply voltage range: 3V to 15V
· High noise immunity: 0.45 VCC (typ.)
· Low power: 50 nW (typ.)
·Tenth power TTL compatible: Drive 2 LPTTL loads




Pinout

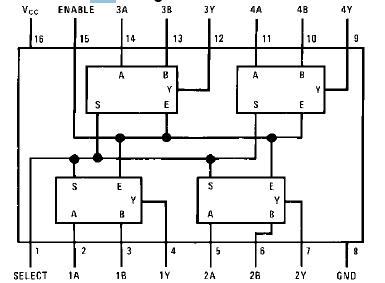

Connection Diagram


Specifications

Voltage at Any Pin

-0.3V to VCC + 0.3V

Operating Temperature Range

-40 to +85

Storage Temperature Range

-65 to +150

Maximum VCC Voltage

18V

Power Dissipation (PD)
Dual-In-Line

700 mW

Small Outline

500 mW

Operating VCC Range

3V to 15V

3V to 15V Lead Temperature
(Soldering, 10 seconds)


260




Description

The MM74C157 multiplexers are monolithic complementary MOS (CMOS) integrated circuits constructed with Nand P-channel enhancement transistors. MM74C157 consist of four 2-input multiplexers with common select and enable inputs. When the enable input is at logical "0" the four outputs assume the values as selected from the inputs. When the enable input is at logical "1", the outputs assume logical "0". Select decoding of MM74C157 is done internally resulting in a single select input only.
