Features:

` High withstand voltage CMOS process used Charger connection absolute maximum rating 28V
` High electrostatic tolerance                                     20kV (150pF, 330 aerial, contact discharge)
` Detection voltage precision                                     Overcharge detection precision ±25mV (0 ~ 50°C)
                                                                                  Discharge overcurrent detection precision ±10mV
                                                                                  Overdischarge detection precision ±58mV
` Built-in detection delay time (timer circuit)               Overcharge detection delay time 0.25 ~ 7.0s (mask option)
                                                                                  Overdischarge detection delay time 4.0 ~ 32.0ms (mask option)
                                                                                  Discharge overcurrent detection delay time 4.0 ~ 32.0ms (mask option)
                                                                                  Short detection delay time 400s
` Includes detection function for too large charger    Detection voltage for too large charger 8.0V
` Setting DS pin                                                          At VDD level allows shortening of overcharge, excess discharge,
                                                                                   discharge overcurrent detection and reset delay time.
` OV charging prohibition function (mask option)


Application

Lithium-ion/lithium polymer battery protection circuits


Pinout

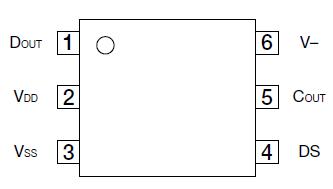

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Supply voltage
VDD
-0.3~12
V
Charger minus pin input voltage
V
VDD-28 ~ VDD+0.3
V
DS pin input voltage
VDS
VSS0.3 ~ VDD+0.3
V
COUT pin output voltage
VCOUT
VDD-28 ~ VDD+0.3
V
DOUT pin output voltage
VDOUT
VSS-0.3 ~ VDD+0.3
V
Operating temperature
TOPR
40 ~ +85
°C
Storage temperature
TSTG
55 ~ +125
°C
