Product Details

Description



Features:

1. Large output current 300mA max.
2. High ripple rejection rate 80dB typ.
3. Internal thermal shutdown circuit.
4. Internal current-limiting circuit.
5. Adjustment-free reset detection voltage 4.2V typ.
6. Easy to set delay time from voltage detection to reset release.



Application

CD-ROM drive.

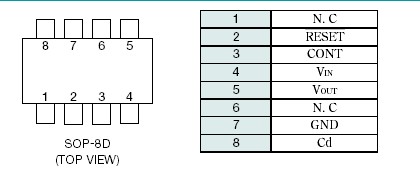

Pinout

  Connection Diagram


Specifications

Item
SYMBOL
Rating
UNIT
Operating temperature
Storage temperature
Supply voltage
Output current
Power dissipation
TOPR
TSTG
VIN
IOUT
Pd
-30~+85
-40~+125
-0.3~+10
400
700*
°C
°C
V
mA
mW
