Features: • Single power supply: +5 V (ML7000-xx) +3 V (ML7001-xx)• Low power consumption Operating mode: 25 mW Typ. VDD = 5.0 V (ML7000-xx) 20 mW Typ. VDD = 3.0 V (ML7001-xx) Power-down mode: 0.05 mW Typ. VDD = 5.0 V (ML7000-xx) 0.03 mW Typ. VDD = 3.0 V (ML7001-xx)• Conforms to ...
ML7000-02: Features: • Single power supply: +5 V (ML7000-xx) +3 V (ML7001-xx)• Low power consumption Operating mode: 25 mW Typ. VDD = 5.0 V (ML7000-xx) 20 mW Typ. VDD = 3.0 V (ML7001-xx) Power-down...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
• Single power supply: +5 V (ML7000-xx) +3 V (ML7001-xx)
• Low power consumption Operating mode: 25 mW Typ. VDD = 5.0 V (ML7000-xx) 20 mW Typ. VDD = 3.0 V (ML7001-xx) Power-down mode: 0.05 mW Typ. VDD = 5.0 V (ML7000-xx) 0.03 mW Typ. VDD = 3.0 V (ML7001-xx)
• Conforms to ITU-T Companding law ML7000-01/ML7001-01: m/A-law pin selectable ML7000-02/ML7001-02: m-law ML7000-03/ML7001-03: A-law
• Transmission characteristics conform to ITU-T G.714
• Short frame sync timing operation
• Built-in PLL eliminates a master clock
• Serial data rate: 64/96/128/192/200/256/384/512/ 768/1024/1536/1544/2048 kHz
• Adjustable transmit gain
• Adjustable receive gain
• Built-in reference voltage supply

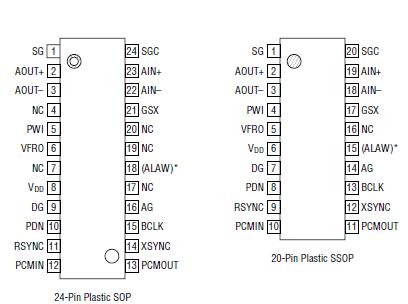

• Package options: 24-pin plastic SOP (SOP24-P-430-1.27-K) (Product name: ML7000-01MA/ML7001-01MA) (Product name: ML7000-02MA/ML7001-02MA) (Product name: ML7000-03MA/ML7001-03MA) 20-pin plastic SSOP (SSOP20-P-250-0.95-K) (Product name: ML7000-01MB/ML7001-01MB) (Product name: ML7000-02MB/ML7001-02MB) (Product name: ML7000-03MB/ML7001-03MB)
Parameter |
Symbol |
Condition |
Rating |
Units |
Power Supply Voltage |
VDD |
- |
0.3 to +7 |
V |
Analog Input Voltage |
VAIN |
- |
0.3 to VDD + 0.3 |
V |
Digital Input Voltage |
VDIN |
- |
0.3 to VDD + 0.3 |
V |
The ML7000-02 are single-channel CMOS CODEC LSI devices for voice signals ranging from 300 to 3400 Hz with filters for A/D and D/A conversion.
Designed especially for a single-power supply and low-power applications, the ML7000-02 are optimized for ISDN terminals, digital wireless systems, and digital PBXs.
The ML7000-02 use the same transmission clocks as those used in the MSM7507.
With the differential analog signal outputs which can drive 60 W load, the ML7000-02 can directly drive a handset receiver.
