Product Details

Description



Features:

• Logic Supply Voltage (VCC) : +3.3V±10% or +5.0V±10%
• Driver Supply Voltage (VHV): +60V
• Driver Output Current
                                     IOHVH1 (Only one driver output : "H") : 40mA (VDISP=40V)
                                     IOHVH2 (All the driver outputs : "H") : 120mA (VDISP=40V)
                                     IOHVL:1mA
• Directly connected to VFD tube by using push-pull output (Pull-down resistors are not
   needed)
• Data Transfer Speed: 4MHz
• Package :
   70-pin plastic SSOP (SSOP70-P-500-0.80-K) (Product names : ML9261MB and ML9262MB)


Pinout

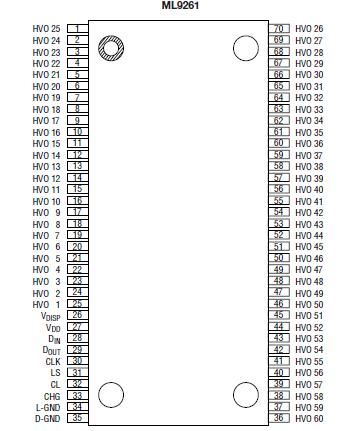

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage (1)      *1
VDD
Applicable to logic supply pin
0.3 to +6.5
V
Supply Voltage (2)               *1, *2
VDISP
Applicable to driver supply pin
0.3 to +65
V
Input Voltage                            *1
VIN
Applicable to all input pins
0.3 to VDD +0.3
V
Output Voltage                          *1
VO
Applicable to DOUT
0.3 to VDD +0.3
V
Output Current
IO
Applicable to HVO1 to 60
50 to 0.0
mA

Withstand Output Voltage

     *1, *2
VHVO
Applicable to HVO1 to 60
0.3 to VDISP +0.3
V
Power Dissipation
PD
Ta 25°C
860
mW
Package Thermal Resistance *3
Rj-a
Ta > 25°C
145
°C/W
Storage Temperature
TSTG
-
55 to +150
°C



Description

The ML62 is a monolithic IC designed for directly driving the grid and anode of the vacuum
fluorescent display (VFD) tube. The device contains a 60-bit shift register, a 60-bit register circuit,
and 60 VFD tube driving circuits on a single chip.

Display data of ML62  is serially stored in the shift register at the rising edge of a clock pulse.

Setting the CL pin low allows all the VFD tube driving circuits to be driven low, which makes it
possible to set the display blanking.

Also, setting both of the CL and CHG pins high of ML62 allows all the VFD tube driving circuits to be driven high, which provides the easy testing of all lights after final assembly of a VFD tube panel.
