Product Details

Description

Features:

• 100BASE-TX Transceiver fully compliant with IEEE802.3u Spec.
• 10BASE-T Tranceiver fully compliant with IEEE802.3u Spec.
• Support MII (Media Independent Interface)
• Automatical Negotiation
• Integrated LED Driver for the status indication
• Supports the function as repeater
• Supports power down mode
• Single +5V (±5%) power supply voltage
• Operating temperature 0 to +70°C
• 100-pin TQFP (TQFP100-P-1414-0.50-K)
• Product name ML53001TB

Application

• NIC (Network Interface Card)
• Hub/Switch/Repeater/Router

Pinout

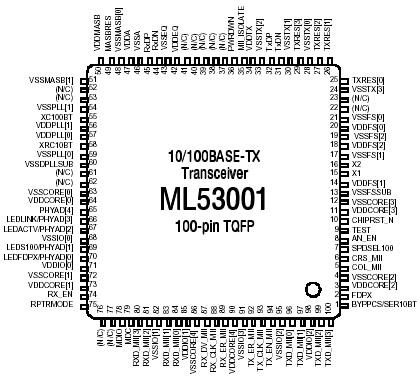

Connection Diagram

Description

ML53001 is a single chip transceiver LSI which facilitates both 100BASE-TX and 10BASE-T EtherNet protocols. The physical layer function can be realised with only a few external components, such as a magnetics. The host interface with commercial MAC (Media Access Control) device can be also realised simply through the MII (Media Independent Interface) bus.
