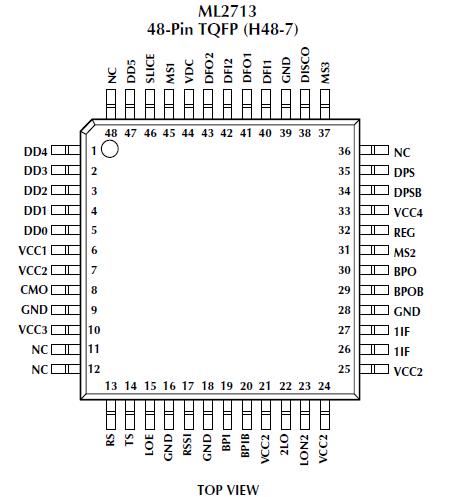

ML2713

Absolute maximum ratings are those values beyond which
the device could be permanently damaged. Absolute
maximum ratings are stress ratings only and functional
device operation is not implied.
VCC1, VCC2 ............................................................ 6.0V
VCC3, VCC4, VCC5, VCC6, VCC7 . -0.3 TO VCC1 + 0.3V
GND .......................................................... -0.3V to 0.3V
Junction Temperature .............................................. 150ºC
Storage Temperature Range ...................... 65ºC to 150ºC
Lead Temperature (Soldering, 10s) .......................... 260ºC
Commercial Temperature Range.................... 0ºC to 70ºC
Extended Temperature Range ..................... -20ºC to 70ºC
VCC Range ..................................................3.3V to 5.5V
Thermal Resistance (JA) (Note 1) ...................... 100ºC/W

The ML2713 combined with the ML2712 forms an FSK (Frequency Shift Keying) 2.4 GHz radio chipset for systems based on IEEE802.11 and other wireless communication protocols using the 2.4HGz ISM band.

The ML2713 is the complete IF section of Micro Linear's 2.4GHz frequency hopping, half duplex radio transceiver chipset. The chip's down conversion super-heterodyne receiver circuit contains an image reject down-convert mixer, a limiter, a discriminator, a receive data filter and a tracking A/D converter. The chips transmit circuit of ML2713 contain a 6 bit D/A converter to digitally modulate the IF, an anti alias filter and an image reject up-convert mixer.
