ML2330

Supply Voltage (VCC) ................................................ 6.0V
GND............................................... 0.3V to VCC + 0.3V
Logic Inputs .................................... 0.3V to VCC + 0.3V
Input Current per Pin ............................................±25mA
Storage Temperature ................................ 65°C to 150°C
Package Dissipation at TA = 25°C ........................750mW
Lead Temperature (Soldering 10 sec.)
SOIC .................................................................... 150°C
Supply Voltage (VCC)
ML2330ES2 ............................................... 3V ± 10%
ML2330ES3 ............................................ 3.3V ± 10%
ML2330ES5 ............................................... 5V ± 10%
Temperature Range
ML2330ES ............................................. 20°C to 70°C
ML2330IS .............................................. 40°C to 85°C

The ML2330 Selectable Dual 3V/3.3V/5V 8-bit DACs are dual voltage output digital-to-analog converters which can be independently programmed, or powered down to conserve power. The devices are intended for use in portable or low power 3V systems where space is critical.

Programming access to the DACs is provided over a high speed (10Mb/s), 3-wire serial interface which is compatible to the SPI™ and Microwire™ data formats. In addition to independent programming of the DAC output voltages, each ML2330 may be powered down, independent of the other DAC, to conserve power. Each DAC draws 2mA maximum quiescent current when operating, and typically less than 1A when powered down.

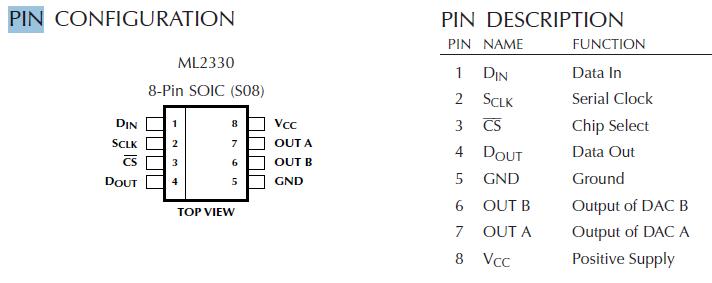

The ML2330comes in an 8-pin SOIC package and in a special Extended Commercial temperature range (20°C to 70°C) or Industrial temperture range (40°C to 85°C).
