Product Details

Description



Features:

`Conversion time: 6s
`ML2280 capable of digitizing a 5V, 40kHz sine wave
`Total unadjusted error with external reference: ±1/2LSB or ±1LSB
`Sample-and-hold: 375ns acquisition
`0 to 5V analog input range with single 5V power supply
`2.5V reference provides 0 to 5V analog input range
`No zero- or full-scale adjust required
`Low power: 12.5mW MAX
`Analog input protection: 25mA (min) per input
`Differential analog voltage inputs (ML2280)
`Programmable multiplexer with differential or single ended analog inputs (ML2283)
`0.3" width 8- or 14-pin DIP, or 8-Pin SOIC (ML2280)
`Superior pin-compatible replacement for ADC0833

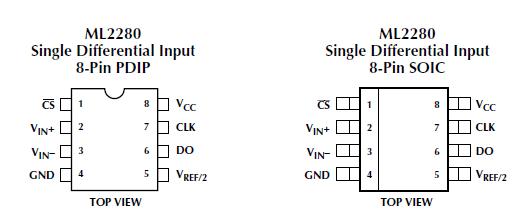

Pinout

Connection Diagram


Description

The ML2280 and ML2283 are 8-bit successive approximation A/D converters with serial I/O and configurable input multiplexers with up to 4 input channels.

All errors of the sample-and-hold incorporated on the ML2280 and ML2283 are accounted for in the analog-todigital converters accuracy specification.

The voltage reference of ML2280 can be externally set to any value between GND and VCC, thus allowing a full conversion over a relatively small voltage span if desired.

The ML2283 is an enhanced double polysilicon, CMOS, pin-compatible second source for the ADC0833 A/D converter. All parameters are guaranteed over temperature with a power supply voltage of 5V ±10%.
