ML2008

Features: `Low noise 0dBrnc max with +24dB gain`Low harmonic distortion 60dB max`Gain range 24 to +24dB`Resolution 0.1dB steps`Flat frequency response ±0.05dB from 0.3-4kHz ±0.10dB from 0.1-20kHz`Low supply current 4mA max from ±5V supplies`TTL/CMOS compatible digital interface`ML2008 is designed ...

product image

ML2008 Picture
See larger image
SeekIC No. : 004422000 Detail

ML2008: Features: `Low noise 0dBrnc max with +24dB gain`Low harmonic distortion 60dB max`Gain range 24 to +24dB`Resolution 0.1dB steps`Flat frequency response ±0.05dB from 0.3-4kHz ±0.10dB from 0.1-20kHz`Lo...

ML2008 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ML2008
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Low noise 0dBrnc max with +24dB gain
`Low harmonic distortion 60dB max
`Gain range 24 to +24dB
`Resolution 0.1dB steps
`Flat frequency response ±0.05dB from 0.3-4kHz ±0.10dB from 0.1-20kHz
`Low supply current 4mA max from ±5V supplies
`TTL/CMOS compatible digital interface
`ML2008 is designed to interface to an 8-bit data bus; ML2009 to 16-bit data bus

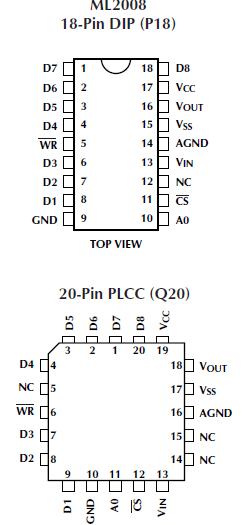

Pinout

Connection Diagram


Specifications

Supply Voltage
VCC .................................................................... +6.5V
VSS ......................................................................6.5V
AGND with Respect to GND....................... VCC to VSS
Analog Inputs and Outputs ..... VSS 0.3V to VCC +0.3V
Digital Inputs and Outputs... GND 0.3V to VCC +0.3V
Input Current Per Pin ........................................ ±25mA
Power Dissipation ........................................... 750mW
Storage Temperature Range ............... 65°C to +150°C
Lead Temperature (Soldering 10 sec.) ................. 300°C


Description

The ML2008 and ML2009 are digitally controlled logarithmic gain/attenuators with a range of 24 to +24dB in 0.1dB steps.

Easy interface to microprocessors is provided by an input latch and control signals consisting of chip select and write.

The interface for gain setting of the ML2008 is by an 8-bit data word, while the ML2009 is designed to interface to a 16-bit data bus with a single write operation by hardwiring the gain/attenuation pin or LSB pin. The ML2008 can be power downed by the microprocessor utilizing a bit in the second write operation.

Absolute gain accuracy of ML2008 is 0.05dB max over supply tolerance of ±10% and temperature range.

These CMOS logarithmic gain/attenuators ML2008 are designed for  a wide variety of applications in telecom, audio, sonar orgeneral purpose function generation.
