ML2004

Features: • Low noise: 0 dBrnc max with +24dB gain• Low harmonic distortion: -60dB max• Gain range: 24 to +24dB• Resolution: 0.1dB steps• Flat frequency response: ±0.05dB from .34 kHz ±0.10dB from .1-20 kHz• Low supply current 4mA max from ±5V supplies• TT...

product image

ML2004 Picture
See larger image
SeekIC No. : 004421999 Detail

ML2004: Features: • Low noise: 0 dBrnc max with +24dB gain• Low harmonic distortion: -60dB max• Gain range: 24 to +24dB• Resolution: 0.1dB steps• Flat frequency response: ±0.05...

ML2004 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ML2004
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low noise: 0 dBrnc max with +24dB gain
• Low harmonic distortion: -60dB max
• Gain range: 24 to +24dB
• Resolution: 0.1dB steps
• Flat frequency response: ±0.05dB from .34 kHz ±0.10dB from .1-20 kHz
• Low supply current 4mA max from ±5V supplies
• TTL/CMOS compatible digital interface
• ML2003 has pin selectable serial or parallel interface; ML2004 serial interface only


Pinout

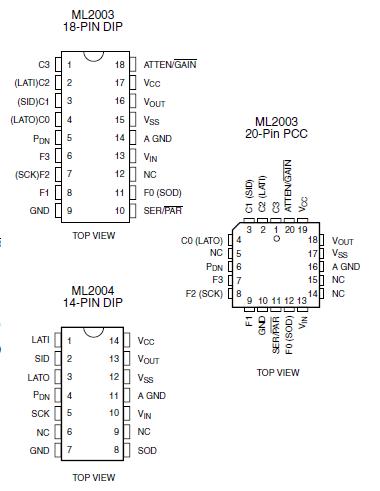

Connection Diagram


Specifications

Parameter
Min.
Max.
Units
Supply Voltage
VCC
VSS
+6.5
-6.5
V
V
AGND with respect to GND
±0.5
V
Analog Input and Output
VSS0.3V
VCC+0.3
V
Digital Input and Outputs
GND 0.3
VCC+0.3
V
Input Current Per Pin
±25
mA
Power Dissipation
750
mA
Storage Temperature Range
-65
+150
Lead Temeperature (Soldering, 10 sec)
300



Description

The ML2003 and ML2004 are digitally controlled logarithmic gain/attenuators with a range of 24 to +24 dB in 0.1 dB steps.

The gain settings of ML2004 are selected by a 9-bit digital word. The ML2003 digital interface is either parallel or serial. The ML2004 is packaged in a 14-pin DIP with a serial interface only.

Absolute gain accuracy of ML2004 is 0.05dB max over supply tolerance of ±10% and temperature range.

These CMOS logarithmic gain/attenuators ML2004 are designed for a wide variety of applications in telecom, audio, sonar, or general purpose function generation. One specific intended application is analog telephone lines.
