MK3234

Features: • Input crystal frequency of 32.768 kHz• Lowest power solution available• Lowest profile clock solution where height is critical• Output clock frequencies up to 50 MHz• Three output clocks• 3.3V or 5.0V operation• Duty cycle of 45/55• Eight...

product image

MK3234 Picture
See larger image
SeekIC No. : 004421720 Detail

MK3234: Features: • Input crystal frequency of 32.768 kHz• Lowest power solution available• Lowest profile clock solution where height is critical• Output clock frequencies up to 50 ...

MK3234 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK3234
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Input crystal frequency of 32.768 kHz
• Lowest power solution available
• Lowest profile clock solution where height is critical
• Output clock frequencies up to 50 MHz
• Three output clocks
• 3.3V or 5.0V operation
• Duty cycle of 45/55
• Eight selectable CPU frequencies
• CPU clock power down
• Separate battery supply pin for 32 kHz runs to 2V
• IDD less than 4A when 32 kHz running
• Packaged in 16 pin narrow (0.150") SOIC


Pinout

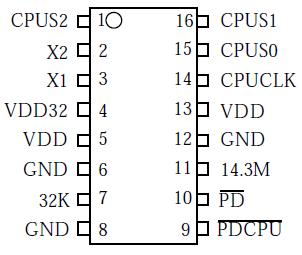

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+0.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 10 seconds
260
Storage temperature
-65
150



Description

The MK3234 is the smallest size, lowest power system clock synthesizer available. MK3234 is the ideal way to generate clocks for portable computers and other devices where low power is required. Using analog Phase-Locked Loop (PLL) techniques, MK3234 operates from a single 32.768 kHz crystal to produce the 32.768kHz, CPU, and ISA bus (system) output clocks.

MK3234 has an individual power down pin for the CPU clock, and a power down pin for the entire device.

The MK3234 can save board space and cost even if it only replaces the 32kHz oscillator circuitry and one additional surface mount crystal or oscillator. The extremely low IDD, the ease of surface mounting, the upgradeability of CPU frequencies, and the power down capability of MK3234 are added benefits in using the part.
