MK3233

Features: • Input crystal frequency of 32.768 kHz• Lowest power solution available• Operating temperature of -20 to 70 °C• Output clock frequencies up to 50 MHz• Three output clocks• 3.3 V or 5.0 V operation• Duty cycle of 45/55• Eight selectable CPU...

product image

MK3233 Picture
See larger image
SeekIC No. : 004421719 Detail

MK3233: Features: • Input crystal frequency of 32.768 kHz• Lowest power solution available• Operating temperature of -20 to 70 °C• Output clock frequencies up to 50 MHz• Three ...

MK3233 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK3233
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Input crystal frequency of 32.768 kHz
• Lowest power solution available
• Operating temperature of -20 to 70 °C
• Output clock frequencies up to 50 MHz
• Three output clocks
• 3.3 V or 5.0 V operation
• Duty cycle of 45/55
• Eight selectable CPU frequencies
• CPU or Communication clock power down
• Separate battery supply pin for 32 kHz runs to 2V
• IDD less than 4A when 32 kHz running
• Serial port clocks of 1.8432 MHz (-01 version) or 3.6864 MHz (-02 version)
• Packaged in 16 pin narrow SOIC


Pinout

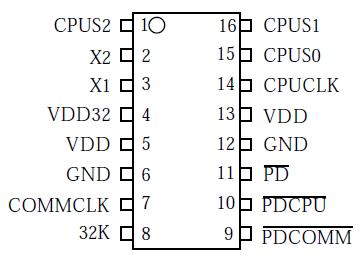

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+0.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 10 seconds
260
Storage temperature
-65
150



Description

The MK3233 is the smallest size, lowest power system clock synthesizer available. MK3233 is the ideal way to generate clocks for smart cell phones, PDAs, and other devices where low power is required. Using analog Phase-Locked Loop (PLL) techniques, the device operates from a single 32.768 kHz crystal to produce the 32.768 kHz, CPU, and serial communications output clocks.

MK3233 has multiple power down modes for the CPU, communications, and 32.768 kHz clocks.

The MK3233 can save board space and cost even if it only replaces the 32 kHz oscillator circuitry of MK3233 and one additional surface mount crystal or oscillator. The extremely low IDD, the ease of surface mounting, the upgradeability of CPU frequencies, and the power down capability are added benefits in using the part.
