MK2716

Features: • Packaged as 8 pin SOIC or die• Input frequency of 27 MHz• Zero ppm synthesis error in output clock• 3.3 V or 5.0 V±10% operating supply• 25 mA drive capability at TTL levels• Ideal for HDTV applications and oscillator manufacturers• Advanced, l...

product image

MK2716 Picture
See larger image
SeekIC No. : 004421688 Detail

MK2716: Features: • Packaged as 8 pin SOIC or die• Input frequency of 27 MHz• Zero ppm synthesis error in output clock• 3.3 V or 5.0 V±10% operating supply• 25 mA drive capabil...

MK2716 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK2716
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged as 8 pin SOIC or die
• Input frequency of 27 MHz
• Zero ppm synthesis error in output clock
• 3.3 V or 5.0 V±10% operating supply
• 25 mA drive capability at TTL levels
• Ideal for HDTV applications and oscillator manufacturers
• Advanced, low power CMOS process
• Custom masks easily and quickly made


Pinout

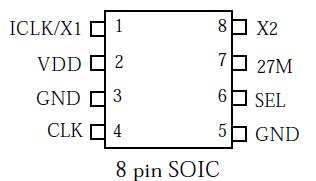

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 10 seconds
260
Storage temperature
-65
150



Description

The MK2716 is a low cost, low jitter, high performance clock synthesizer of MK2716 designed to produce the 74.176 MHz and 74.25 MHz clocks necessary for HDTV systems. Using analog Phase- Locked Loop (PLL) techniques, the device accepts a 27 MHz clock or fundamental crystal input. The zero ppm synthesis error exactly locks the display to the digital stream.

MicroClock MK2716 offers a wide variety of clock synthesizers for desktop and portable computers, and multimedia systems. Consult MicroClock to eliminate crystals and oscillators from your board.
