MK2042-01

Features: • Packaged in 16 pin SOIC• User controlled or automatic switching• Clock detect feature• Does not add jitter or phase noise to the clock• Ideal for systems with backup or redundant clocks• Selectable timeouts for clock loss detection• Accepts inp...

product image

MK2042-01 Picture
See larger image
SeekIC No. : 004421669 Detail

MK2042-01: Features: • Packaged in 16 pin SOIC• User controlled or automatic switching• Clock detect feature• Does not add jitter or phase noise to the clock• Ideal for systems wi...

MK2042-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK2042-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 16 pin SOIC
• User controlled or automatic switching
• Clock detect feature
• Does not add jitter or phase noise to the clock
• Ideal for systems with backup or redundant clocks
• Selectable timeouts for clock loss detection
• Accepts input frequencies from 0 Hz to 160 MHz
• Works with all MK2049-xx to provide enhanced operation
• 3.3 V or 5 V operation

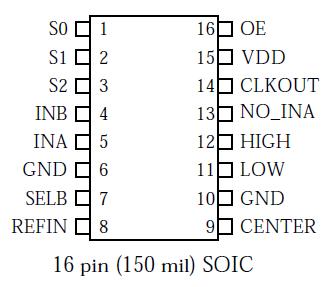

Pinout

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+0.5V
V
Ambient Operating Temperature
-40
70
Soldering Temperature Max of 10 seconds
250
Storage temperature
-65
150



Description

The MK2042-01 is designed to switch between two clock sources. The switching can be externally controlled by an input pin or configured to switch automatically if the primary input clock stops. The part also provides clock detection by reporting when the primary input clock has stopped.

The MK2042-01 is optimized for use with our MK2049 family of Communication Clock Synthesizers. When used together, the MK2042-01 and MK2049 provide a complete system for switching to an alternate source when the primary clock is lost, or for maintaining a stable frequency on the MK2049 output.

For switching between clock sources with no output glitches or short pulses, use the ICS580 or ICS581 multiplexers.
