MK1711-01

Features: • Packaged in 16 pin narrow SOIC• Uses an inexpensive 20.0 MHz crystal• Eight selectable frequencies up to 200 MHz• Duty cycle of 50% typical• +3.3V operating voltage• 25mA output drive capability at TTL levels• Compatible with TI DSP devicesPino...

product image

MK1711-01 Picture
See larger image
SeekIC No. : 004421661 Detail

MK1711-01: Features: • Packaged in 16 pin narrow SOIC• Uses an inexpensive 20.0 MHz crystal• Eight selectable frequencies up to 200 MHz• Duty cycle of 50% typical• +3.3V operating...

MK1711-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK1711-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 16 pin narrow SOIC
• Uses an inexpensive 20.0 MHz crystal
• Eight selectable frequencies up to 200 MHz
• Duty cycle of 50% typical
• +3.3V operating voltage
• 25mA output drive capability at TTL levels
• Compatible with TI DSP devices

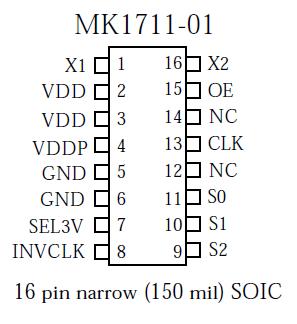

Pinout

Connection Diagram


Specifications

Parameter Conditions Minimum Typical Maximum Units
Supply voltage, VDD Referenced to GND
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+0.5
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 10 seconds
250
Storage temperature
-65
150



Description

The MK1711-01 is a low cost, low jitter, high performance, high speed PLL clock synthesizer designed for high-frequency applications. Using MicroClock's analog and digital Phase-Locked  Loop (PLL) techniques, the device uses an inexpensive 20 MHz crystal to generate a highquality output clock up to 200MHz.

MicroClock MK1711-01 manufactures the largest variety of clock synthesizers for all applications. Consult MicroClock to eliminate crystals and oscillators from your board.
