Product Details

Description

Features:

• Packaged in 16 pin narrow (150 mil) SOIC
• Exact multiplications stored in the device eliminate the need for external dividers
• Accepts 8 kHz input clock
• Output clock rates include T1, E1, T2, E2
• 3.0V to 5.5V operation
• Available in commercial (0 to +70 C) or industrial (-40 to +85 C) temperature ranges
• For jitter attenuation, use the MK2049

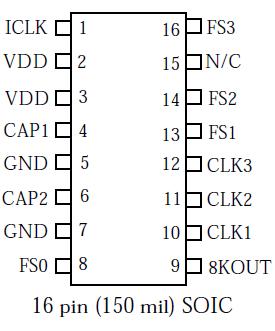

Pinout

Connection Diagram

Specifications

Parameter	Conditions	Minimum	Typical	Maximum	Units
Supply Voltage, VDD	Referenced to GND			7	V
Inputs and Clock Outputs		-0.5		VDD+0.5V	V
Ambient Operating Temperature		0		70
Soldering Temperature	Max of 10 seconds			250
Storage temperature		-65		150

Description

The MK1574-01 is a Phase-Locked Loop (PLL) based clock synthesizer, which accepts an 8 kHz clock input as a reference, and generates many popular communications frequencies. All outputs of MK1574 are frequency locked together and to the input. This allows for the generation of locked clocks to the 8 kHz backplane clock, simplifying clock generation and distribution in communications systems.

MicroClock of MK1574 can customize this device for any other different frequencies.
