MJ-3536N

CONN AUDIO JACK 3.5MM MONO

product image

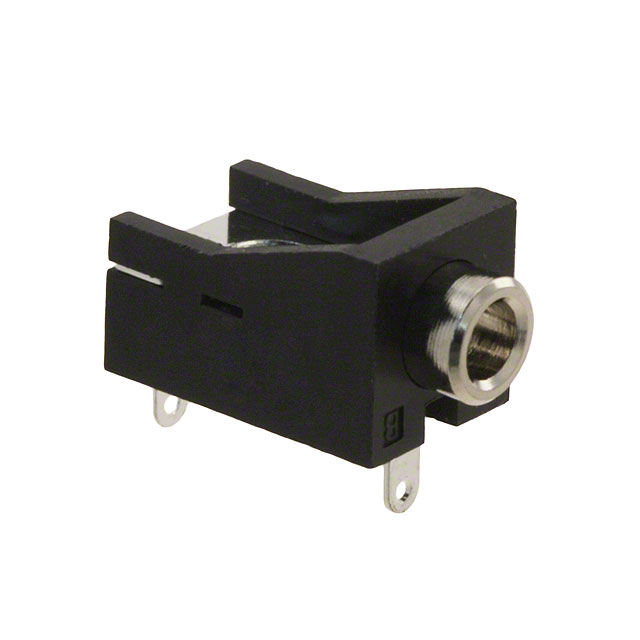

MJ-3536N Picture
SeekIC No. : 003016664 Detail

MJ-3536N: CONN AUDIO JACK 3.5MM MONO

floor Price/Ceiling Price

US $ .18~.66 / Piece | Get Latest Price
Part Number:
MJ-3536N
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $.66
  • $.46
  • $.31
  • $.25
  • $.22
  • $.18
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Phone Jack Gender: Female
Signal Lines: Mono Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Recovery Time : 20 ns Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch Mounting Type: Through Hole, Right Angle
Termination: Solder Eyelet(s) Shielding: Unshielded
Features: -

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Signal Lines: Mono
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch
Shielding: Unshielded
Features: -
Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Mounting Type: Through Hole, Right Angle
Color - Contact: Silver
Termination: Solder Eyelet(s)


Specifications

  • rating: 12 Vdc @ 1A
  • contact resistance: 30mΩ MAX
  • insulation resistance: 50MΩ MIN @ 100 Vdc
  • voltage withstand: 500V AC RMS for 1 minute
  • flammability: UL94V-0 rated
  • life: 5,000 cycles
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



  • Parameters:

    Technical/Catalog InformationMJ-3536N
    VendorCUI Inc
    CategoryConnectors
    Connector TypePhone Jack
    GenderFemale
    Plug/Mating Plug Diameter3.50mm (0.141", 1/8", Mini Plug)
    Signal LinesMono
    Number of Positions/Contacts2 Conductors, 3 Contacts
    Mounting TypeThrough Hole, Right Angle
    Features-
    ColorBlack
    TerminationSolder Eyelet(s)
    Internal Switch(s)Single Switch
    ShieldingUnshielded
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names MJ 3536N
    MJ3536N
    CP 3536N ND
    CP3536NND
    CP-3536N
