MJ-3536

CONN 3.5MM RT ANG JACK PANEL MNT

product image

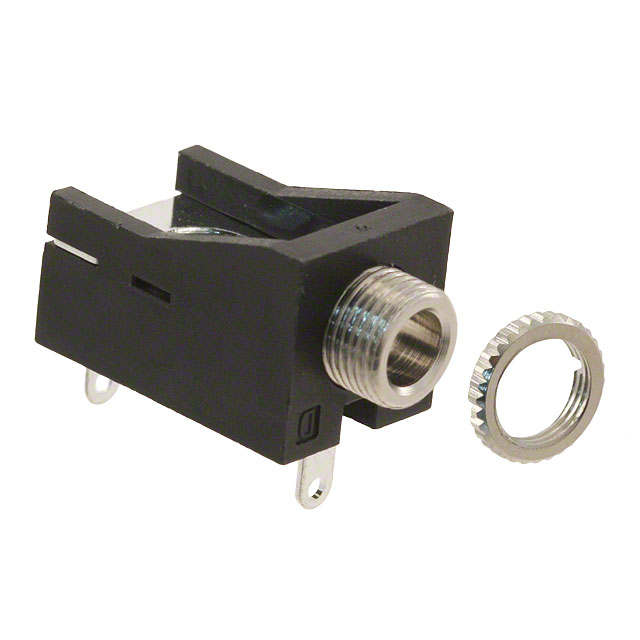

MJ-3536 Picture
See larger image
SeekIC No. : 003016663 Detail

MJ-3536: CONN 3.5MM RT ANG JACK PANEL MNT

MJ-3536 Data Sheet

floor Price/Ceiling Price

US $ .23~.67 / Piece | Get Latest Price
Part Number:
MJ-3536
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $.67
  • $.52
  • $.39
  • $.32
  • $.28
  • $.23
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Phone Jack Gender: Female
Signal Lines: Mono Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Recovery Time : 20 ns Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch Mounting Type: Panel Mount; Through Hole, Right Angle
Termination: Solder Eyelet(s) Shielding: Unshielded
Features: Mounting Hardware, Thread Lock

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Signal Lines: Mono
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch
Shielding: Unshielded
Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Color - Contact: Silver
Termination: Solder Eyelet(s)
Mounting Type: Panel Mount; Through Hole, Right Angle
Features: Mounting Hardware, Thread Lock


Specifications

  • rating: 12 Vdc @ 1A
  • contact resistance: 30mΩ MAX
  • insulation resistance: 50MΩ MIN @ 100 Vdc
  • voltage withstand: 500V AC RMS for 1 minute
  • flammability: UL94V-0 rated
  • life: 5,000 cycles
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationMJ-3536
    VendorCUI Inc
    CategoryConnectors
    Connector TypePhone Jack
    GenderFemale
    Plug/Mating Plug Diameter3.50mm (1/8", Mini Plug)
    Signal LinesMono
    Number of Positions/Contacts2 Conductors, 3 Contacts
    Mounting TypeThrough Hole, Right Angle
    FeaturesInternal Switch, Mounting Hardware, Thread Lock
    ColorBlack
    TerminationSolder Eyelet (s)
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names MJ 3536
    MJ3536
    CP 3536 ND
    CP3536ND
    CP-3536
