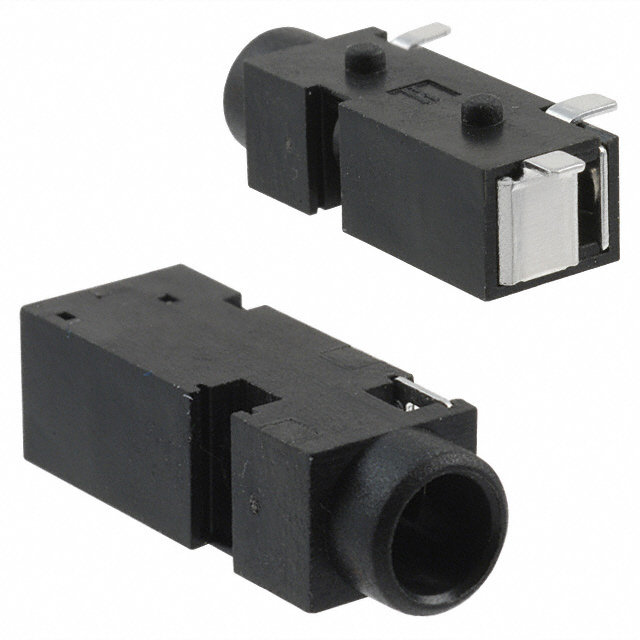

MJ-3523-SMT: CONN AUDIO JACK MONO 3.5MM SMD

MJ-3523-SMT Data Sheet

US $ .38~.8 / Piece | Get Latest Price

Part Number:: MJ-3523-SMT
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.8
$.63
$.48
$.38

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MJ-3502 evaluate
US $.27 - .78 / Piece

CONN AUDIO JACK 3.5MM MONO
MJ-3502N evaluate
US $.25 - .72 / Piece

CONN AUDIO JACK 3.5MM MONO
MJ-3502-NUT evaluate
US $.06 - .37 / Piece

REPLACEMENT NUT FOR MJ-3502

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Phone Jack	Gender:	Female
Signal Lines:	Mono	Plug/Mating Plug Diameter:	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Number of Positions/Contacts:	2 Conductors, 3 Contacts	Internal Switch(s):	Single Switch
Maximum Reverse Leakage Current :	800 uA	Mounting Type:	Surface Mount
Termination:	Solder	Shielding:	Unshielded
Features:	-

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Signal Lines: Mono
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch
Termination: Solder
Shielding: Unshielded
Features: -
Color - Contact: Black
Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Mounting Type: Surface Mount

Specifications

rating: 12 Vdc @ 1A

contact resistance: 30mΩ MAX

insulation resistance: 50MΩ MIN @ 100V DC

voltage withstand: 500V AC RMS for 1 minute

flammability: UL94V-0 rated

life: 5,000 cycles

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	MJ-3523-SMT
Vendor	CUI Inc (VA)
Category	Connectors
Connector Type	Phone Jack
Gender	Female
Plug/Mating Plug Diameter	3.50mm (1/8", Mini Plug)
Signal Lines	Mono
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Surface Mount
Features	Internal Switch
Color	Black
Termination	Solder
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MJ 3523 SMT MJ3523SMT CP 3523MJDKR ND CP3523MJDKRND CP-3523MJDKR
