MIK34063A

Features: • Operation from 3.0V to 40V.• Current limiting.• Low standby current.• Output switch current to 1.5A without external transistors.• Frequency of operation from 100Hz to 100kHz.• Step-up, step-down or inverting switch regulators.• Precision 2% Re...

product image

MIK34063A Picture
See larger image
SeekIC No. : 004421299 Detail

MIK34063A: Features: • Operation from 3.0V to 40V.• Current limiting.• Low standby current.• Output switch current to 1.5A without external transistors.• Frequency of operation fr...

MIK34063A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MIK34063A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operation from 3.0V to 40V.
• Current limiting.
• Low standby current.
• Output switch current to 1.5A without external transistors.
• Frequency of operation from 100Hz to 100kHz.
• Step-up, step-down or inverting switch regulators.
• Precision 2% Reference.
• Output voltage adjustable


Pinout

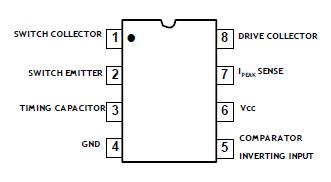

Connection Diagram


Specifications

SYMBOL
 PARAMETER
VALUE(MAX)
UNIT
VCC
 Power Supply Voltage
40
V
VIR
 Comparator Input Voltage Range
-0.3 to 40.0
V
VC(switch)
 Switch Collector Voltage
40
V
VE(switch)
 Switch Emitter Voltage (VPIN 1= 40 V)
40
V
VCE(switch)
 Switch Collector to Emitter Voltage
40
V
VC(driver)
 Driver Collector Voltage
40
V
IC(driver)
 Driver Collector Current (Note 1)
100
mA
ISW
 Switch Current
1.5
A
TJ
 Operating Junction Temperature
150.
ºC
TA
 Operating Ambient Temperature Range
0 to 70.0
ºC
TSTG
 Storage Temperature Range
-65 to 150.0
ºC
POWER DISSIPATION AND THERMAL CHARACTERISTICS
DIP-8 plastic package (MIK34063AP)
PD
 TA = 25°C
1.25
W
PJA
 Thermal Resistance Junction-ambient (Note 2)
100.
ºC/W
SOP-8 plastic package (MIK34063A)
PD
 TA = 25°C
0.625
W
PJA
 Thermal Resistance Junction-ambient (Note 2)
160
ºC/W



Description

The MIK34063A is a monolithic control circuit containing the primary functions required for DCtoDC converters. MIK34063A consist of an internal temperature compensated reference comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. It can be used for Step Down and StepUp and VoltageInverting applications with a minimum number of external components.
