MID400

Maximum Propagation Delay Time :
Maximum Reverse Diode Voltage :
Maximum Continuous Output Current :
Minimum Operating Temperature : - 40 C
Packaging : Bulk
Output Type : Open Collector
Package / Case : DIP-8
Maximum Forward Diode Voltage : 1.5 V
Maximum Operating Temperature : + 85 C
Isolation Voltage : 2500 Vrms
Maximum Forward Diode Current : 30 mA
Maximum Power Dissipation : 115 mW


Features:

• Direct operation from any line voltage with the use of an external resistor.
• Externally adjustable time delay
• Externally adjustable AC voltage sensing level
• High voltage isolation between input and output
• Compact plastic DIP package
• Logic level compatibility
• UL recognized (File #E90700)
• VDE recognized (file #102915),
add option V (e.g., MID400V)




Application

• Monitoring of the AC/DC "line-down" condition
• "Closed-loop" interface between electromechanical elements such as solenoids, relay contacts, small motors, and microprocessors
• Time delay isolation switch

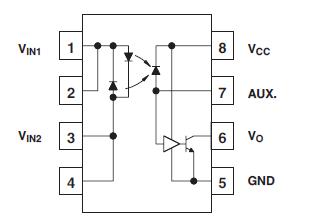

Pinout






Specifications

Rating	Value	Unit
EMITTER RMS Current	25	mA
DC Current	±30	mA
LED Power Dissipation @ TA= 25°C (PD)	45	mW
Derate above 70°C	2.0	mW/°C
DETECTOR Low Level Output Current (IOL)	20	mA
High Level Output Voltage(VOH)	7.0	V
Supply Voltage (VCC)	7.0	V
Detector Power Dissipation @ TA= 25°C (PD)	7.0	mW
Derate above 70°C	2.0	mW/°C
TOTAL DEVICE Storage Temperature	-55 to +125	°C
Operating Temperature	-40 to +85	°C
Lead Solder Temperature	260 for 10 sec	°C
Total Device Power Dissipation @ TA= 25°C (PD)	115	mW
Derate above 70°C	4.0	mW/°C
Steady State Isolation	2500	VRMS

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
MID400	Full Production	RoHS Compliant	$2.04	DIP-B	8	BULK	TBD
MID400S	Full Production	RoHS Compliant	$2.04	SMDIP-B	8	BULK	TBD
MID400SD	Full Production	RoHS Compliant	$2.04	SMDIP-B	8	TAPE REEL	TBD
MID400SDV	Full Production	RoHS Compliant	$2.04	SMDIP-B	8	TAPE REEL	TBD
MID400SV	Full Production	RoHS Compliant	$2.04	SMDIP-B	8	BULK	TBD
MID400V	Full Production	RoHS Compliant	$2.04	DIP-B	8	BULK	TBD
MID400W	Not recommended for new designs	RoHS Compliant	N/A	DIP-B	8	BULK	TBD
MID400WV	Full Production	RoHS Compliant	$2.04	DIP-B	8	BULK	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Description

The MID400 is an optically isolated AC line-to-logic interface device. It is packaged in an 8-lead plastic DIP. The AC line voltage is monitored by two back-to-back GaAs LED diodes in series with an external resistor. A high gain detector circuit senses the LED current and drives the output gate to a logic low condition.

The MID400 has been designed solely for the use as an AC line monitor . It is recommended for use in any AC-to-DC control application where excellent optical isolation, solid state reliability, TTL compatibility, small size, low power, and low frequency operations are required.

The MID400 is an optically isolated AC line-to-logic interface device. It is packaged in an 8-lead plastic DIP. The AC line voltage is monitored by two back-to-back GaAs LED diodes in series with an external resistor. A high gain detector circuit senses the LED current and drives the output gate to a logic low condition.

Features of the MID400 are:1)direct operation from any line voltage with the use of an external resistor; (2)externally adjustable time delay; (3)externally adjustable AC voltage sensing level; (4)high voltage isolation between input and output; (5)compact plastic DIP package; (6)logic level compatibility; (7)UL recognized (File #E90700) ; (8)VDE recognized (file #102915),add option V(e.g., MID400V).The MID400 has been designed solely for the use as an AC line monitor. It is recommended for use in any AC-to-DC control application where excellent optical isolation, solid state reliability, TTL compatibility, small size, low power, and low frequency operations are required.

The absolute maximum ratings of the MID400 can be summarized as:(1)high level output voltage:7 V;(2)storage temperature range:-55 to 125;(3)supply voltage:7V;(4)operating temperature:-40 to 85;(5)RMS current:25mA;(6)DC current:±30 mA.The input of the MID400 consists of two back-to-back LED diodes which will accept and convert alternating currents into light energy. An integrated photo diode-detector amplifier forms the output network. Optical coupling between input and output provides 2500 VRMS voltage isolation. A very high current transfer ratio (defined as the ratio of the DC output current and the DC input current) is achieved through the use of high gain amplifier. The detector amplifier circuitry operates from a 5 V DC supply and drives an open collector transistor output. The switching times are intentionally designed to be slow in order to enable the MID400, when used as an AC line monitor, to respond only to changes in input voltage exceeding many milliseconds.

Parameters:

Technical/Catalog Information	MID400
Vendor	Fairchild Optoelectronics Group
Category	Isolators
Mounting Type	Through Hole
Package / Case	8-DIP
Isolation Voltage	2500Vrms
Configuration	1, One Direction
Input Type	AC
Output Type	Open Collector
Data Rate	-
Current - Output/Channel	3mA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MID400 MID400
