MICRF005

Features:

• 800MHz to 1000MHz frequency range
• Data rates up to 115kbps
• No filters or inductors required
• Low 10mA operating supply current at 868MHz
• Shutdown mode for >10:1 duty-cycle operation
• Very low RF antenna re-radiation
• CMOS logic interface for standard ICs
• Extremely low external part count
• Transmit standby mode for bi-directional link control




Application

• Wireless game controllers
• Security systems
• Medium-rate data modems

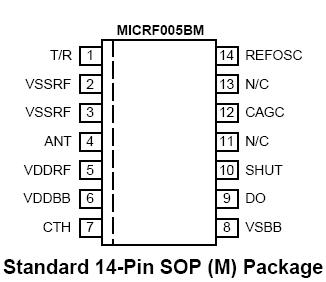

Pinout






Specifications

Supply Voltage (V_DDRF, V_DDBB) ...............................................+7V
Reference Oscillator Input Voltage (V_REFOSC) ......................V_DDBB
Input/Output Voltage (V_I/O) .................. ...... V_SS0.3 to V_DD+0.3
Junction Temperature (T_J) ............................................... +150°C
Storage Temperature Range (T_S) ...................65°C to +150°C
Lead Temperature (soldering, 10 sec.) ........................... +260°C




Description

The MICRF005 QwikRadio™ UHF receiver is a single-chip OOK (on-off keyed) receiver IC for remote wireless applications. This device is a true single-chip, "antenna-in, data-out" device. All RF and IF tuning is accomplished automatically within the IC which eliminates manual tuning production costs and results in a highly reliable, extremely low-cost solution for high-volume wireless applications.

The MICRF005 provides two additional key features: (1) A transmit standby mode, and (2) a shutdown mode which may be used for duty-cycle operation. These features make the MICRF005 ideal for low power applications in both one-way and bi-directional wireless links.

All IF and post-detection (demodulator) data filtering is provided on the MICRF005, no external filters are required. Nominal filter bandwidth is fixed a 300kHz allowing a data throughput at rates up to 115kbps.
