Description



Features:

• ± 1% output voltage accuracy
• Guaranteed 500mA output
• Low quiescent current
• Low dropout voltage
• Extremely tight load and line regulation
• Very low temperature coefficient
• Current and thermal limiting
• Zero off-mode current
• Logic-controlled electronic shutdown
• Available in SO-8 and SOT-223 packages


Application

• SCSI-II active terminator
• Desktop, laptop, notebook, and palmtop computers
• Intelligent instrumentation
• Printers
• Disk drives
• Voltage reference


Pinout

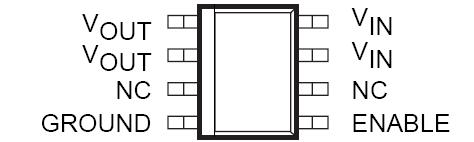

Connection Diagram


Specifications

Input Voltage (VIN) ........................................ 20V to +20V
Enable Input Voltage (VEN) .......................... 0.3V to +20V
Power Dissipation (PD) ................ Internally Limited, Note 3
Lead Temperature (soldering, 5 sec.) ....................... 260°C
ESD Rating ...............................................................>2000V
Operating Ratings (Note 2)
Input Voltage (VIN) ........................................... +3V to +6V
Enable Input Voltage (VEN) ............................. 0.3V to VIN
Junction Temperature Range (TJ) ............. 40°C to +125°C


Description

The MIC5204 is an active terminator designed to comply with SCSI-II specifications. It is enabled by a CMOS or TTL compatible logic signal. When disabled, power consumption drops nearly to zero and the output goes into a high impedance state. Key MIC5204 features include protection against reversed battery, current limiting, and overtemperature shutdown.
