MIC49300

Features: • Input Voltage Range:VIN: 1.4V to 6.5VVBIAS: 3.0V to 6.5V• Stable with 1µF ceramic capacitor• ±1% initial tolerance• Maximum dropout voltage (VIN-VOUT) of 500mV over temperature• Adjustable output voltage down to 0.9V• Ultra fast transient respo...

product image

MIC49300 Picture
See larger image
SeekIC No. : 004420972 Detail

MIC49300: Features: • Input Voltage Range:VIN: 1.4V to 6.5VVBIAS: 3.0V to 6.5V• Stable with 1µF ceramic capacitor• ±1% initial tolerance• Maximum dropout voltage (VIN-VOUT) of 50...

MIC49300 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MIC49300
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Input Voltage Range:
VIN: 1.4V to 6.5V
VBIAS: 3.0V to 6.5V
• Stable with 1µF ceramic capacitor
• ±1% initial tolerance
• Maximum dropout voltage (VIN-VOUT) of 500mV over temperature
• Adjustable output voltage down to 0.9V
• Ultra fast transient response (Up to 10MHz bandwidth)
• Excellent line and load regulation specifications
• Logic controlled shutdown option
• Thermal shutdown and current limit protection
• Power S-Pak package
• Junction temperature range: 40°C to 125°C




Application

• Graphics processors
• PC Add-In Cards
• Microprocessor core voltage supply
• Low voltage digital ICs
• High Efficiency Linear power supplies
• SMPS post regulators

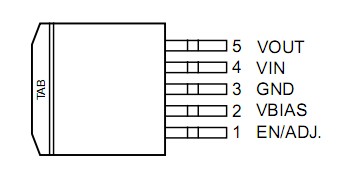

Pinout






Specifications

Supply Voltage (VIN) ........................................................ 8V
Bias Supply Voltage (VBIAS) ............................................. 8V
Enable Input Voltage (VEN) ...............................................8V
Power Dissipation ..................................... Internally Limited
ESD Rating, Note 3 ......................................................... 2kV




Description

The MIC49300 is a high-bandwidth, low-dropout, 3.0A voltage regulator ideal for powering core voltages of low-power microprocessors. The MIC49300 implements a dual supply configuration allowing for very low output impedance and very fast transient response.

The MIC49300 requires a bias input supply and a main input supply, allowing for ultra-low input voltages on the main supply rail. The input supply operates from 1.4V to 6.5V and the bias supply requires between 3V and 6.5V for proper operation. The MIC49300 offers fixed output voltages from 0.9V to 1.8V and adjustable output voltages down to 0.9V.

The MIC49300 requires a minimum of output capacitance fo stability, working optimally with small ceramic capacitors.

The MIC49300 is available in a 5-pin S-Pak. It operates over a junction temperature range of 40°C to +125°C.
