MIC37300

• 3.0A minimum guaranteed output current
• 500mV maximum dropout-voltage overtemperature
       Ideal for 3.0V to 2.5V conversion
       Ideal for 2.5V to 1.8V, 1.65V, or 1.5V conversion
• Stable with ceramic or tantalum capacitor
• Wide input voltage range:
      V_IN: 2.25V to 6.0V
• ±1.0% initial output tolerance

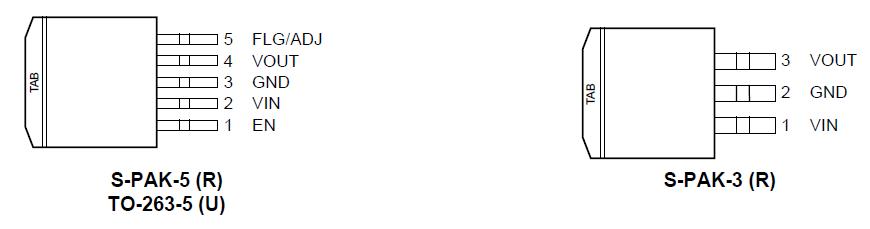

• Fixed and adjustable output voltages:
     MIC37300 - 3-pin fixed
     MIC37301 - 5-pin fixed with flag
     MIC37302 - 5-pin adjustable
• Excellent line and load regulation specifications
• Logic controlled shutdown
• Thermal shutdown and current-limit protection
• Reverse-leakage protection
• Low profile S-Pak package

Supply Voltage (V_IN) .................................................... .......... .6.5V
Enable Input Voltage (V_EN)⁽³⁾ ............................................. .. . 6.5V
Power Dissipation (P_D)⁽³⁾ ............................... .....Internally Limited
Junction Temperature (T_J) ..............................40 T_J +125

Storage Temperature (T_S) ................................65 T_J +150

Lead Temperature (soldering, 5 sec.) ...................................... 260

ESD⁽⁴⁾

The Micrel MIC37300/01/02 is a 3.0A low-dropout linear voltage regulator that provides a low-voltage, high-current output with a minimum number of external components. It offers high precision, ultra-low-dropout (500mV overtemperature), and low-ground current.
The MIC37300/01/02 operates from an input of 2.25V to 6.0V. It is designed to drive digital circuits requiring lowvoltage at high currents (i.e., PLDs, DSP, microcontroller, etc.). It is available in fixed and adjustable output voltages. Fixed voltages include 1.5V, 1.8V, 2.5V and 3.3V. The adjustable version is capable of 1.24V to 5.5V.
Features of the MIC37300/01/02 LDO include thermal and current-limit protection, and reverse-current protection. Logic enable and error flag pins are available on the 5-pin version. Junction temperature range of the MIC37300/01/02 is from 40°C to 125°C.
For applications requiring input voltage greater than 6.0V, see the MIC3910x, MIC3915x, MIC3930x, and MIC3950x LDOs.
