Position: Home  > All Categories> Integrated Circuits (ICs) > MIC2940A

MIC2940A

Features: • High output voltage accuracy• Guaranteed 1.25A output• Low quiescent current• Low dropout voltage• Extremely tight load and line regulation• Very low temperature coefficient• Current and thermal limiting• Input can withstand 20V reverse b...

product image

MIC2940A Picture
See larger image
SeekIC No. : 004420865 Detail

MIC2940A: Features: • High output voltage accuracy• Guaranteed 1.25A output• Low quiescent current• Low dropout voltage• Extremely tight load and line regulation• Very low ...

MIC2940A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MIC2940A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High output voltage accuracy
• Guaranteed 1.25A output
• Low quiescent current
• Low dropout voltage
• Extremely tight load and line regulation
• Very low temperature coefficient
• Current and thermal limiting
• Input can withstand 20V reverse battery and +60V positive transients
• Logic-controlled electronic shutdown
• Output programmable from 1.24V to 26V(MIC2941A)
• Available in TO-220, TO-263, TO-220-5, and TO-263-5 packages.


Application

• Battery Powered Equipment
• Cellular Telephones
• Laptop, Notebook, and Palmtop Computers
• PCMCIA VCC and VPP Regulation/Switching
• Bar Code Scanners
• Automotive Electronics
• SMPS Post-Regulator/ DC to DC Modules
• Voltage Reference
• High Efficiency Linear Power Supplies


Pinout

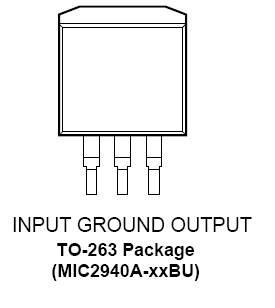

Connection Diagram


Specifications

Power Dissipation (Note 1) ............... Internally Limited
Lead Temperature (Soldering, 5 seconds) .........260°C
Storage Temperature Range ..........65°C to +150°C
TO-220 qJC ........................................................ 2 °C/W
TO-263 qJC ........................................................ 2 °C/W
Input Supply Voltage ...............................20V to +60V
Operating Input Supply Voltage .................. 2V† to 26V
Shutdown Input Voltage .........................0.3V to +30V
Error Comparator Output Voltage .......... 0.3V to +30V
